Mitsubishi

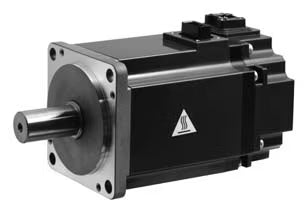

Mitsubishi HG-KR13 Servo motor HGKR13
Mitsubishi HG-KR13 Servo motor HGKR13
Couldn't load pickup availability
DESCRIPTION
The Mitsubishi HG-KR13 is a high-performance AC servo motor from the HG-KR series, part of Mitsubishi’s MELSERVO-J4 family. With a compact frame and a rated output of 100W, it offers exceptional speed, precision, and responsiveness. This rotary-type servo motor is ideal for space-constrained, high-speed automation systems in packaging, robotics, and material handling applications.
TECHNICAL SPECIFICATIONS
Model Number: HG-KR13
Series: HG-KR (MELSERVO-J4)
Motor Type: Rotary AC Servo Motor
Rated Output: 100W (0.1 kW)
Rated Speed: 3000 RPM
Maximum Speed: 6000 RPM
Rated Torque: 0.32 Nm
Peak Torque: 0.96 Nm
Power Supply: 3-phase 200V AC
Encoder: 22-bit incremental encoder (4,194,304 pulses/rev)
Shaft Type: Straight shaft without key
Brake: No brake (standard model)
Frame Size: 40 mm
Protection Class: IP65 (excluding shaft)
Insulation Class: F
Cooling Method: Natural cooling
Weight: Approx. 0.5 kg
Manufacturer: Mitsubishi Electric
