Mitsubishi HG-KR43BK SERVO MOTOR HGKR43BK

Description:

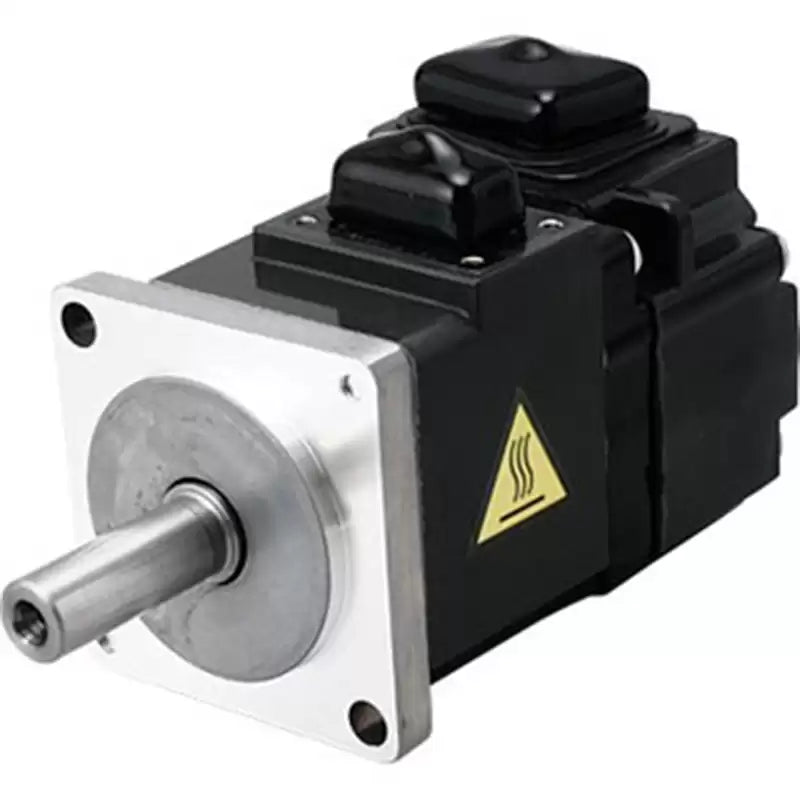

The HG-KR43BK is a high-performance AC servo motor from the HG series, designed for precise and reliable motion control in industrial automation applications. With a rated power of 400W, this motor delivers robust torque and speed capabilities, making it ideal for tasks that require smooth and accurate movement. The HG-KR43BK features a compact design, high-resolution encoder for precise feedback, and advanced thermal management to ensure stable operation even in demanding environments. Its versatility and high efficiency make it suitable for use in a wide range of machinery and automation systems.

Technical Specifications:

• Model: HG-KR43BK
• Type: AC Servo Motor
• Power Rating: 400W
• Rated Voltage: 200V AC
• Rated Current: 2.1A
• Rated Speed: 3000 RPM
• Torque: 1.2 Nm (Nominal)
• Feedback Device: High-resolution Incremental Encoder
• Insulation Class: Class F
• Operating Temperature Range: 0°C to 40°C
• Dimensions: 4.5 x 4.5 x 7.0 inches
• Weight: 6.0 lbs
• Mounting Type: Flange Mount
• Certifications: CE, UL
