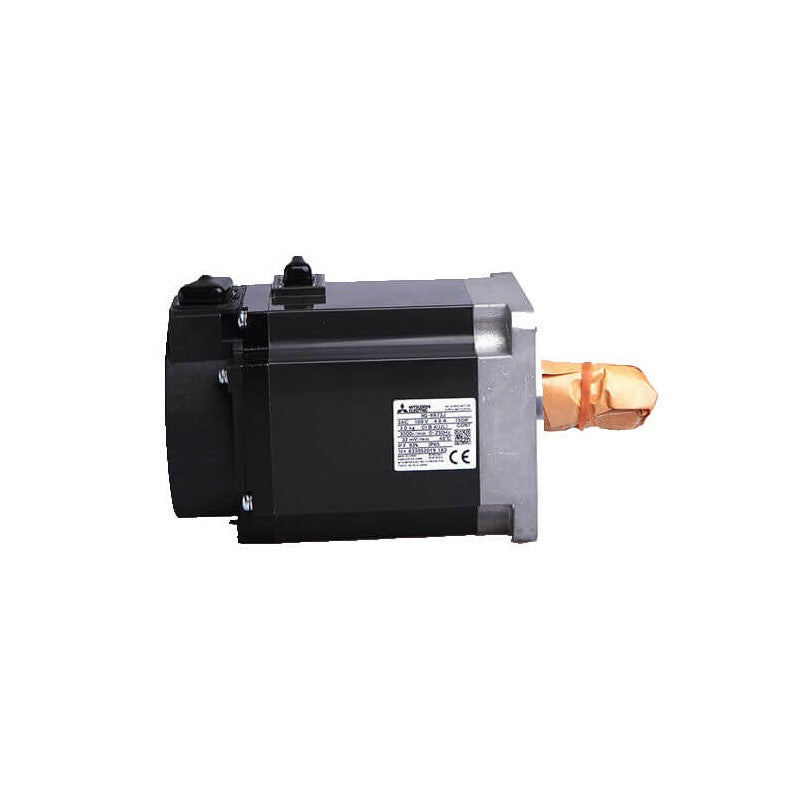

Mitsubishi HG-KR73J Servo Motor HGKR73J

Description:

HGKR73J SERVO MOTOR HG SERIES LOW INERTIA SMALL CAPACITY 0.75 KW 3000 R/MIN OIL SEAL STANDARD STRAIGHT SHAFT The Mitsubishi HG-KR73J is a high-performance AC servo motor designed for precise and reliable motion control in industrial automation applications. With a rated power of 750W, this motor is well-suited for tasks requiring high torque and smooth operation, such as in robotics, CNC machinery, and automated systems. The HG-KR73J features advanced servo control technology and a high-resolution encoder, providing exceptional speed and position accuracy. Its robust and durable design ensures reliable performance in demanding environments, making it an excellent choice for enhancing automation and control systems.

Technical Specifications:

• Model: HG-KR73J
• Type: AC Servo Motor
• Rated Power: 750W
• Rated Voltage: 200V AC
• Rated Current: 3.5A
• Rated Torque: 2.4 Nm (continuous)
• Rated Speed: 3000 RPM
• Feedback Device: 20-bit encoder
• Insulation Class: Class F
• Operating Temperature Range: 0°C to 40°C
• Protection Class: IP65
• Dimensions: Approximately 90 mm (diameter) x 220 mm (length)
• Weight: Approximately 5.5 kg
• Compliance: CE, RoHS
