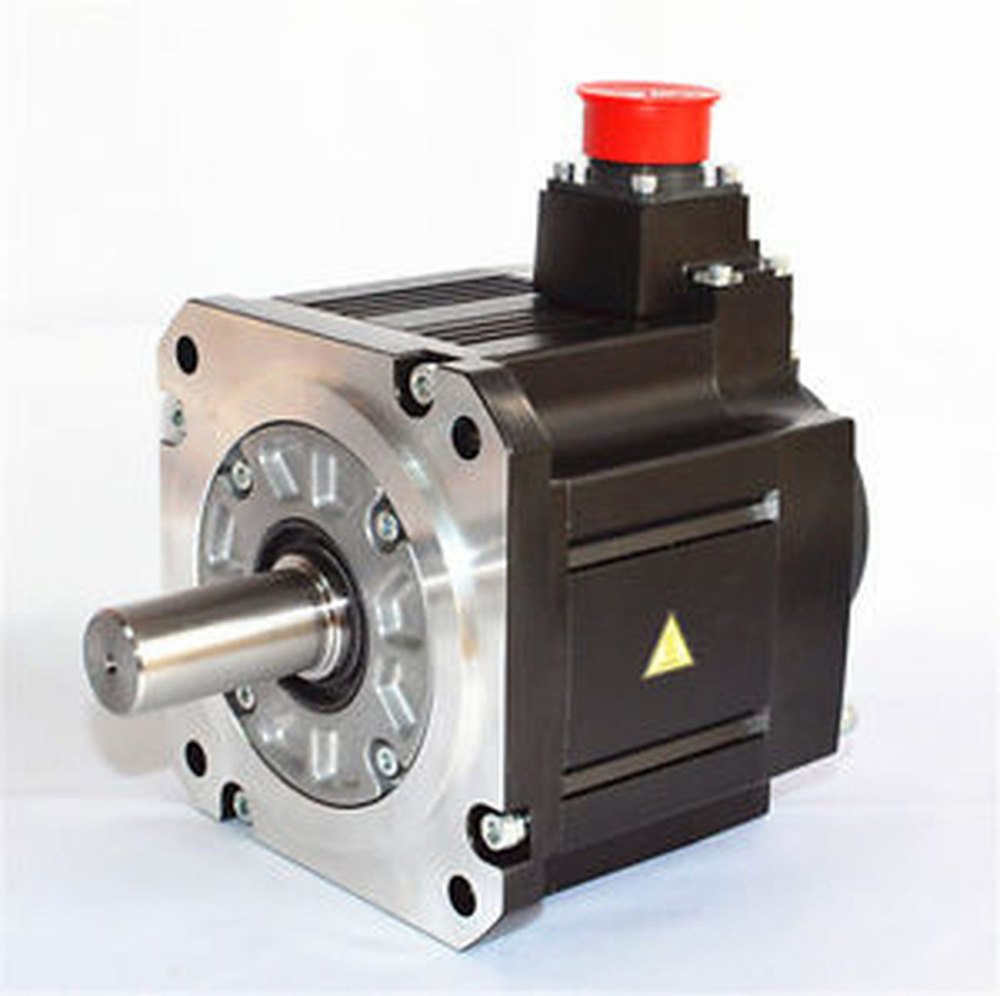

Mitsubishi HG-SN152J-S100+MR-JE-200A Servo Motor HGSN152JS100

Description:

Part Number:MR-JE-200A+HG-SN152J-S100 Manufacturer: Mitsubishi Electric Condition :Brand New The Mitsubishi HG-SN152J-S100 servo motor, paired with the MR-JE-200A servo drive, provides a highly efficient and reliable motion control solution suitable for a range of industrial automation applications. The HG-SN152J-S100 is a robust AC servo motor known for its high torque and precision, making it ideal for applications requiring accurate and stable performance. Complementing the motor, the MR-JE-200A servo drive offers advanced control features and a compact design, ensuring optimal integration and performance. This combination is ideal for use in high-precision machinery, robotics, and automated production lines, delivering enhanced control and efficiency.

Technical Specifications:

• Mitsubishi HG-SN152J-S100 Servo Motor
• Model: HG-SN152J-S100
• Type: AC Servo Motor
• Rated Power: 1.0 kW
• Rated Voltage: 200V AC
• Rated Current: 5.0 A
• Rated Torque: 3.2 Nm (continuous)
• Rated Speed: 3000 RPM
• Feedback Device: 17-bit encoder
• Insulation Class: Class F
• Protection Class: IP65
• Operating Temperature Range: 0°C to 40°C
• Dimensions: Approximately 140 mm (diameter) x 300 mm (length) (dimensions may vary slightly)
• Weight: Approximately 4.5 kg
• Features: High torque, high-speed performance, precision feedback, robust construction
• Mitsubishi MR-JE-200A Servo Drive
• Model: MR-JE-200A
• Type: AC Servo Drive
• Rated Power: 2.0 kW
• Rated Voltage: 200V AC
• Rated Current: 10.0 A
• Control Modes: Position control, speed control, torque control
• Communication Ports:
• RS-232C: For programming and communication
• Optional Ethernet: For network communication (additional module required)
• Operating Temperature Range: 0°C to 55°C
• Dimensions: Approximately 150 mm x 180 mm x 250 mm (dimensions may vary slightly)
• Weight: Approximately 3.5 kg
