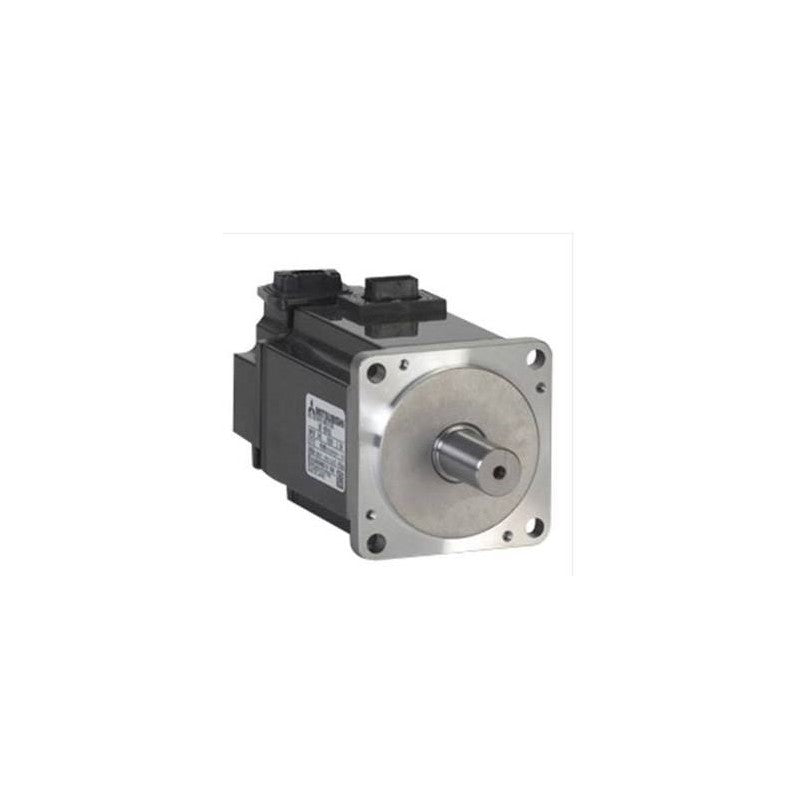

Mitsubishi HG-SR102J Servo Motor HGSR102J

Description:

The Mitsubishi HG-SR102J Servo Motor is used in Mitsubishi MELSERVO-J4 motion control systems for precision positioning and medium-inertia industrial automation applications. Commonly installed in CNC machines, robotics, packaging equipment, and automated assembly systems requiring high-performance servo motor control. Maintenance teams, OEMs, and system integrators use this motor for replacement, retrofit, or motion system repair to restore positioning accuracy and reliable machine operation.

Applications:

The Mitsubishi HG-SR102J is used in CNC feed axes, robotic systems, packaging and labeling machines, conveyor positioning systems, semiconductor equipment, indexing tables, assembly automation, and factory automation machinery requiring 1kW class AC servo motor control with high-resolution encoder feedback.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: HG-SR102J
• Product Type: AC Servo Motor
• Series: MELSERVO-J4 HG-SR Series
• Rated Output: 1 kW
• Rated Voltage: 200 V class
• Rated Speed: 2000 rpm
• Maximum Speed: 3000 rpm
• Rated Torque: 4.8 Nm
• Maximum Torque: 14.3 Nm
• Encoder: 22-bit absolute encoder (4,194,304 pulses/rev)
• Inertia: Medium inertia type
• Shaft Type: Straight shaft
• Protection Class: IP67
• Cooling Method: Natural cooling
• Current Type: AC servo motor
• Application: Precision motion control

Common Replacements:

• Mitsubishi HG-SR102
• Mitsubishi HG-SR102B
• Mitsubishi HC-SFS102
