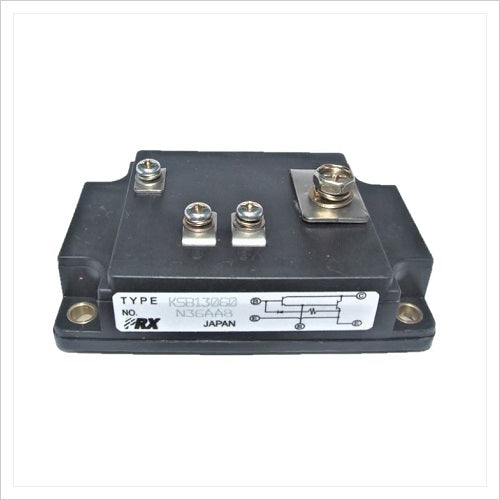

Mitsubishi KSB13060 POWER TRANSISTOR MODULE INSULATED SEMICONDUCTOR

Description:

The Mitsubishi KSB13060 Power Transistor Module is used in industrial power control systems to switch and regulate electrical power in inverter and drive applications. Commonly installed in motor drives, welding equipment, and industrial power supplies requiring reliable semiconductor switching. Maintenance teams, OEMs, and system integrators use this part for repair, retrofit, and replacement of insulated power transistor modules.

Applications:

The Mitsubishi KSB13060 is widely used in industrial environments such as variable frequency drives (VFDs), servo drive systems, power conversion units, and welding machines where efficient switching and thermal stability are essential. It supports consistent performance in applications requiring durable operation under high electrical loads.

Technical Specifications:

• Manufacturer Part Number (MPN): KSB13060
• Brand: Mitsubishi Electric
• Product Type: Power Transistor Module (Insulated Semiconductor)
• Rated Current: Approx. 130 A
• Voltage Rating: 600 V
• Configuration: Power transistor module
• Insulation Type: Insulated base module
• Mounting Type: Screw-mounted
• Cooling Method: Heatsink compatible
• Application: Inverters, motor drives, and power control systems
• Package Type: Industrial power module
• Operating Environment: High-power industrial applications

Common Replacements:

• Mitsubishi CM150DU-12F
• Mitsubishi PM150CSD060
• Mitsubishi CM100DU-12F
