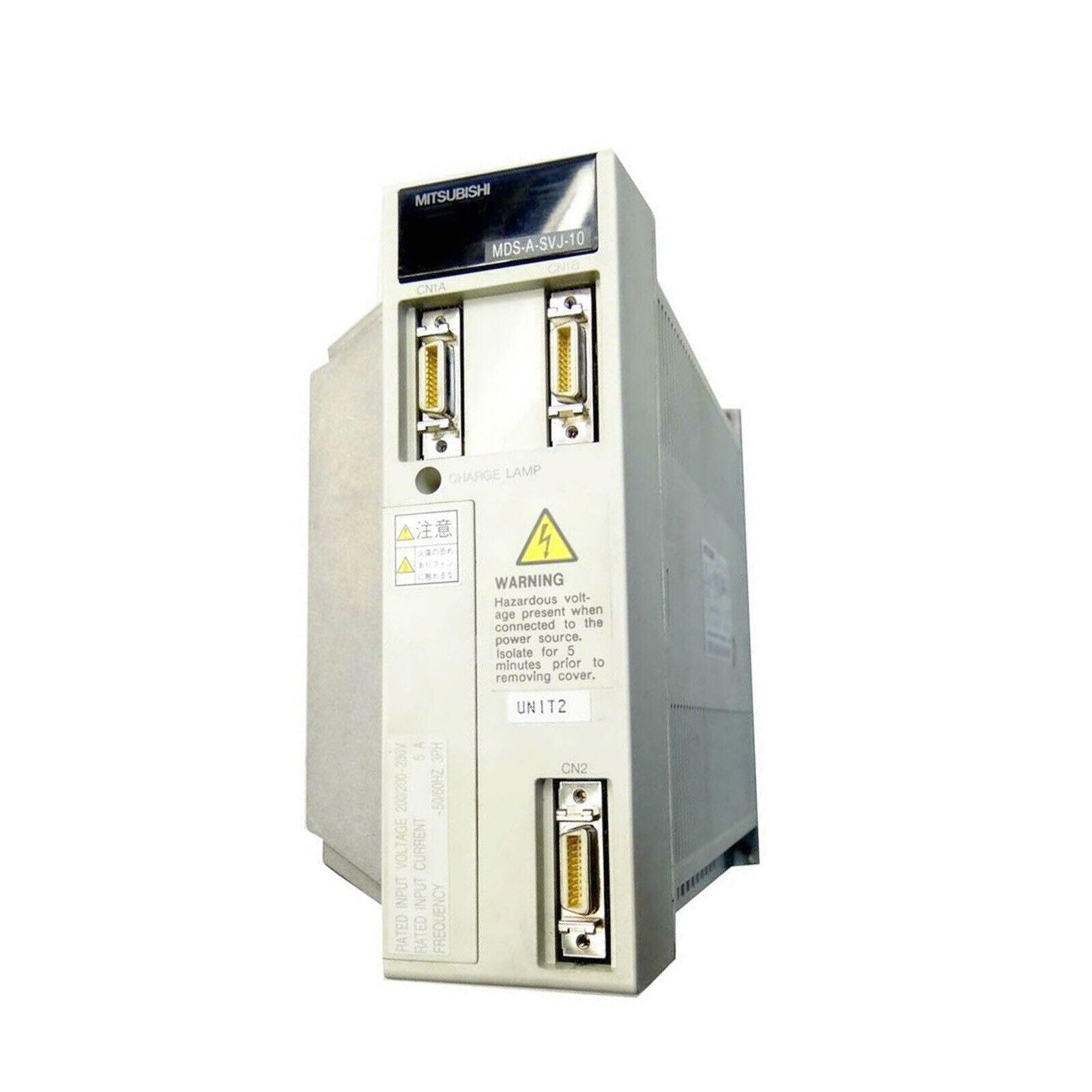

Mitsubishi MDS-A-SVJ-10 Servo Drive MDSASVJ10

DESCRIPTION
The Mitsubishi MDS-A-SVJ-10 is a 1 kW AC servo amplifier from the MDS-A series, designed to control Mitsubishi AC servo motors with high-speed, high-precision positioning. Often used in CNC machines and industrial automation systems, this servo drive provides position, speed, and torque control capabilities and is compatible with Mitsubishi’s older generation MDS-A system architecture, typically used in Meldas CNC systems.

TECHNICAL SPECIFICATIONS
Model: MDS-A-SVJ-10
Rated Power Output: 1.0 kW
Series: MDS-A (SVJ-type servo amplifier)
Control Modes: Position, speed, and torque control
Input Voltage: 200–230V AC (typically 3-phase)
Output Current: Approx. 6.5A (motor-dependent)
Motor Compatibility: Mitsubishi AC servo motors (e.g., HC or HA series)
Interface: Analog/pulse command input (depending on system configuration)
Mounting: Panel mount
Cooling Method: Internal fan (forced air)
Communication: Via Mitsubishi CNC control system
