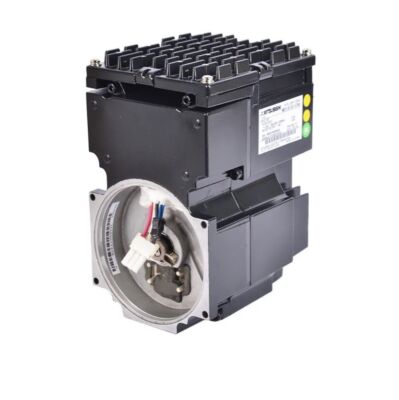

Mitsubishi MDS-B-ISV-07NX Servo Drive MDSBISV07NX

Description:

The Mitsubishi MDS‑B‑ISV‑07NX servo drive is used in industrial automation systems to precisely control AC servo motors for motion, position, and speed control. Commonly installed in CNC machines, robotics, packaging equipment, and automated production lines where dynamic motion and accuracy are required. Maintenance teams and system integrators use this drive for motion system upgrades, machine retrofits, and replacement of failed or legacy servo amplifiers.

Applications:

The Mitsubishi MDS‑B‑ISV‑07NX servo drive is widely used in motion control applications requiring high performance and responsive motor control. It is commonly found in CNC machining centers, gantry and pick‑and‑place systems, industrial robots, material handling equipment, and packaging machinery where coordinated motion and precise control of servo motors are critical for production quality and cycle efficiency.

Technical Specifications:

• Model: MDS‑B‑ISV‑07NX
• Drive type: AC servo drive / inverter
• Recommended motor power: Approx. 0.7 kW class (platform dependent)
• Input voltage: 200–230 VAC (typically three‑phase)
• Output current: Rated per drive class
• Control method: Pulse/direction or network control (SSCNET/MELSEC link)
• Communication: Pulse train input or network (model dependent)
• Cooling method: Forced air / built‑in fan
• Mounting: Panel or cabinet mount
• Compatibility: Mitsubishi servo motors (MELSERVO‑J / older series depending on system)
• Protection: Overcurrent, overvoltage, overtemperature safeguards
• Indicators: Status / fault LEDs
• Designed for: Motion control with feedback‑based servo systems
• Operating environment: Industrial standard temperature and humidity range

Common Replacements:

• Mitsubishi MDS‑B‑ISV‑15NX
• Mitsubishi MDS‑B‑ISV‑04NX
• Yaskawa SGDM‑04ADA
