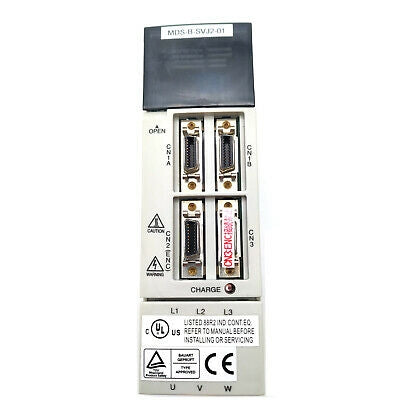

Mitsubishi MDS-B-SVJ2-01 Servo Drive MDSBSVJ201

Description:

The Mitsubishi MDS‑B‑SVJ2‑01 Servo Drive is a compact AC servo amplifier used to control Mitsubishi servo motors with high‑precision speed, torque, and position regulation. Commonly installed in CNC machines, robotics, packaging equipment, and automated assembly lines where accurate motion control and smooth dynamic response are required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system upgrades to enhance motion system performance and reliability.

Applications:

The MDS‑B‑SVJ2‑01 servo drive is widely used in industrial automation and motion control systems to manage precise motor movements in demanding applications. It is deployed in machine tools, gantry systems, indexing tables, pick‑and‑place robots, labeling machines, and conveyors to provide controlled acceleration, deceleration, and positioning. With its support for advanced feedback and tuning features, it improves motion accuracy and cycle times in automated production environments.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: MDS‑B‑SVJ2‑01
• Product Type: AC Servo Drive / Servo Amplifier
• Series: MDS‑B (SV‑J2 family)
• Input Voltage: 200–230 VAC, three‑phase (typical)
• Output Configuration: Single axis servo control
• Control Method: Digital servo control
• Feedback Support: Encoder feedback (incremental/absolute)
• Rated Output Current: ~1.0–1.5 A (model dependent)
• Protection Features: Overcurrent, overvoltage, overheat, phase loss protection
• Command Input: Pulse train or network interface compatible (model dependent)
• Mounting: Panel / DIN‑rail cabinet installation
• Cooling: Built‑in fan or heat‑sink cooled
• Application: Precision motion control in automated systems

Common Replacements:

• Mitsubishi MDS‑B‑SVJ2‑10 (higher current variant)
• Mitsubishi MDS‑B‑SVJ2‑05 (lower power variant)
• Yaskawa SGDV‑R90A01A Servo Drive
