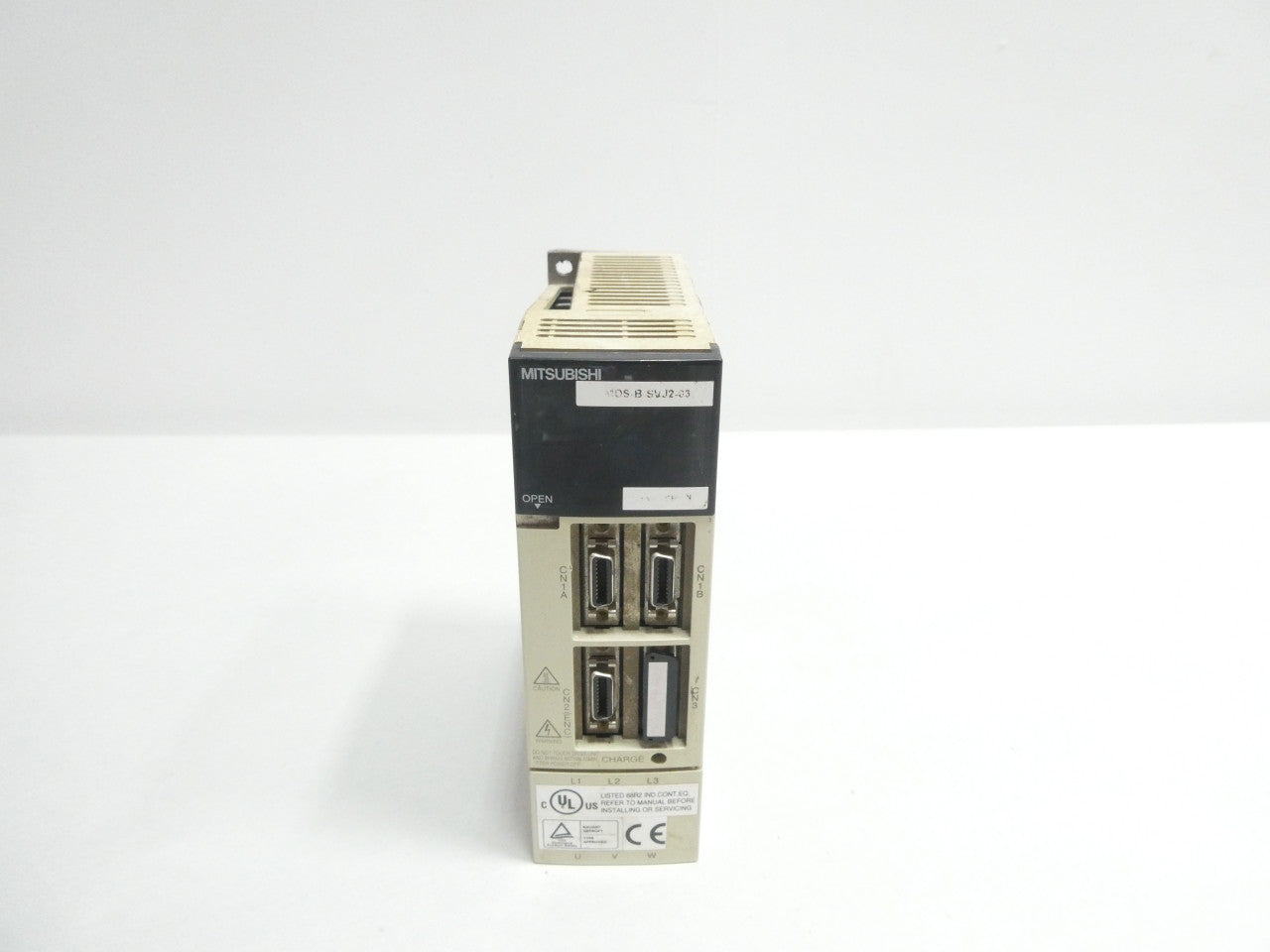

Mitsubishi MDS-B-SVJ2-03 Servo Drive MDSBSVJ203

Description:

MDSBSVJ203 B60501 SERVO DRIVE SERVO AMPLIFIER SERVO DRIVE UNIT AC SERVO CONTROL 0.3 KW INPUT : 1.8 AMP 3 PHASE 200-230 VAC 50/60 HZ OUTPUT: 1.9 AMP 3 PHASE 170 V 0-360 HZ CNC The MDS-B-SVJ2-03 is a robust and high-performance AC servo drive from Mitsubishi, engineered to provide precise control and reliable operation for various industrial automation applications. This drive is designed to work seamlessly with Mitsubishi’s servo motors, offering advanced control algorithms for smooth and accurate motion. Ideal for use in robotics, CNC machines, and automated production systems, the MDS-B-SVJ2-03 features a compact and durable design that ensures efficient performance even in demanding environments. Its comprehensive set of communication options and protection features enhance system integration and operational safety.

Technical Specifications:

• Type: AC Servo Drive
• Model: MDS-B-SVJ2-03
• Rated Power: 0.75 kW
• Rated Voltage: 200-230V AC
• Rated Current: 3.0 A
• Control Method: Vector Control, PWM (Pulse Width Modulation)
• Feedback Type: Incremental Encoder
• Communication Interface: RS-422/485, optional Ethernet
• Protection Features: Overcurrent, Overvoltage, Overtemperature, Short Circuit Protection
• Operating Temperature Range: 0°C to 55°C
• Dimensions (LxWxH): 140 mm x 150 mm x 240 mm
• Weight: Approx. 2.5 kg
• Cooling Method: Forced Air Cooling
