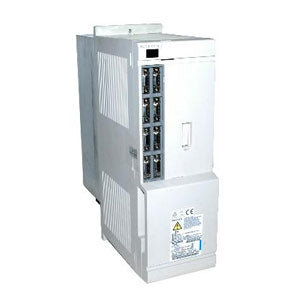

Mitsubishi MDS-C1-SP-260 MDSC1SP260

Description:

The Mitsubishi MDS-C1-SP-260 Spindle Drive Unit is used in CNC machining systems to control spindle motor speed and torque for precise machining operations. Commonly installed in CNC lathes, machining centers, and milling machines requiring stable and high-performance spindle control. Maintenance teams, OEMs, and system integrators use this part for spindle drive replacement, system repair, and retrofit of CNC equipment.

Applications:

The Mitsubishi MDS-C1-SP-260 spindle drive is widely used in precision manufacturing environments where consistent spindle performance is critical. It is applied in CNC machining centers, turning machines, and grinding equipment, ensuring accurate speed regulation, improved machining quality, and reliable operation in demanding industrial processes.

Technical Specifications:

• Manufacturer Part Number (MPN): MDS-C1-SP-260
• Brand: Mitsubishi Electric
• Product Type: Spindle Drive Unit
• Series: MDS-C1
• Rated Output: 26.0 kW (class)
• Input Voltage: 3-phase AC (200–230 VAC typical)
• Frequency: 50/60 Hz
• Control Type: Digital spindle control
• Compatible Motors: Mitsubishi spindle motors
• Feedback Type: Encoder / sensor feedback (model-dependent)
• Cooling Method: Forced air cooling
• Mounting Type: Rack / panel-mounted
• Application Environment: CNC machines, industrial automation systems

Common Replacements:

• Mitsubishi MDS-C1-SP-220 Spindle Drive
• Mitsubishi MDS-C1-SP-300 Spindle Drive
• Mitsubishi MDS-D-SP-260 Spindle Drive
