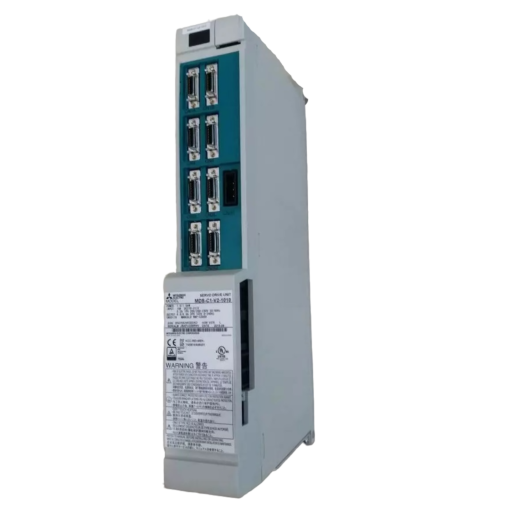

Mitsubishi MDS-C1-V2-1010 Servo Driver MDSC1V21010

Description:

The Mitsubishi MDS-C1-V2-1010 Servo Driver is used in Mitsubishi MELDAS CNC control systems for dual-axis AC servo motor control and motion processing. Commonly installed in CNC machining centers, milling machines, and industrial machine tools requiring compact two-axis servo amplification. Maintenance teams, OEMs, and system integrators use this drive for replacement, retrofit, or CNC servo system repair to restore axis control and machine positioning accuracy.

Applications:

The Mitsubishi MDS-C1-V2-1010 is used in CNC machining centers, milling machines, turning centers, precision machine tools, automated production machinery, and industrial motion systems requiring dual-axis servo drive control for feed axes and positioning applications.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: MDS-C1-V2-1010
• Product Type: CNC Servo Drive / Servo Amplifier
• Series: MELDAS MDS-C1 Series
• Axis Control: Dual-axis servo drive
• Rated Output: 1.0 kW + 1.0 kW
• Output Current: 6.8 A / 6.8 A
• Input Voltage: DC 270–311 V
• Control Method: Digital PWM servo control
• Output Voltage: 155 V AC
• Frequency: 50/60 Hz control power
• Cooling: Forced air cooling
• Mounting: CNC control cabinet installation
• Application: CNC axis servo control
• Compatible Motors: Mitsubishi HA series servo motors
• Protection: Built-in dynamic braking and protection functions

Common Replacements:

• Mitsubishi MDS-C1-V2-1010-N
• Mitsubishi MDS-C1-V2-1005
• Mitsubishi MDS-C1-V2-3510
