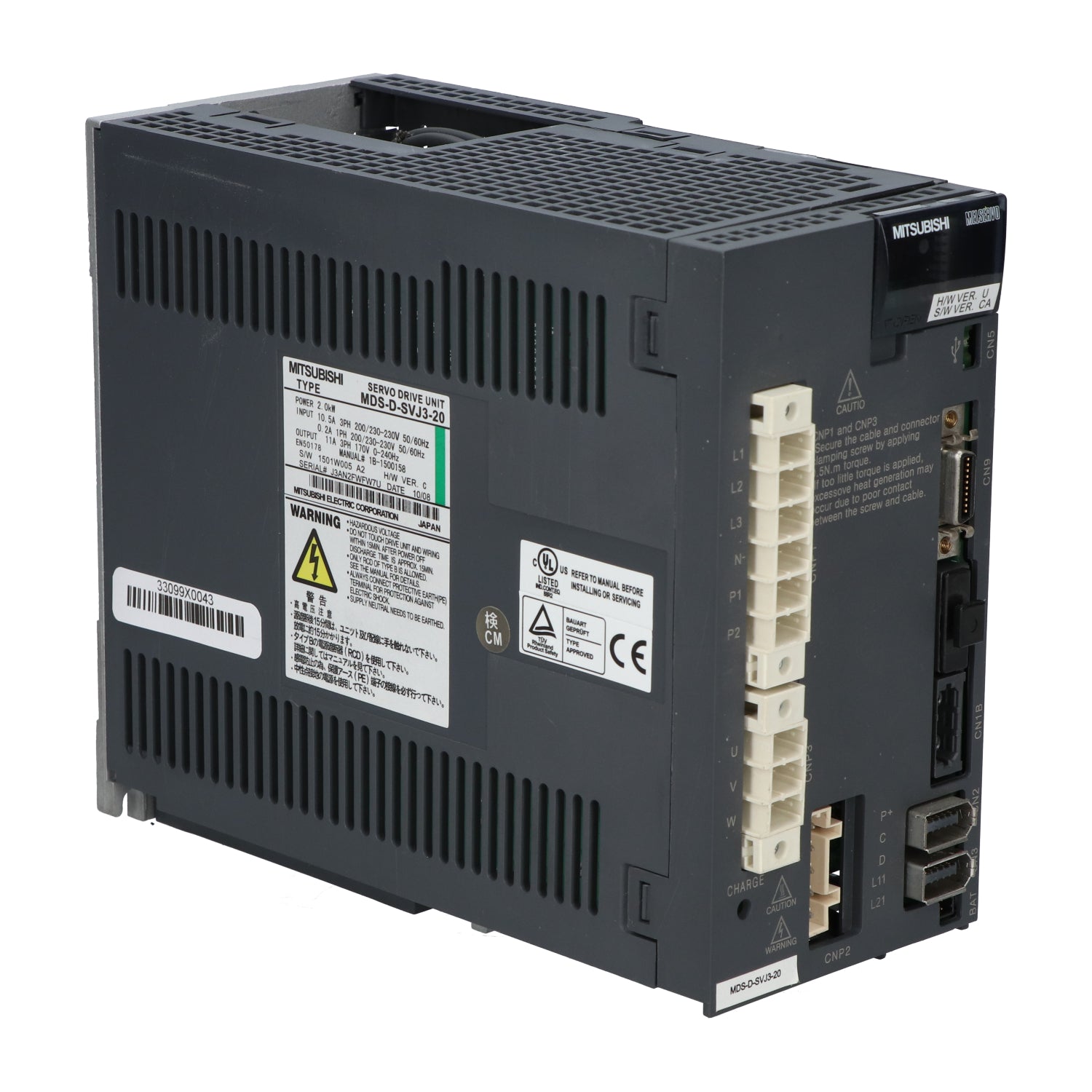

Mitsubishi MDS-D-SVJ3-20 Servo Drive MDSDSVJ320

Description:

MDSDSVJ320 SERVO DRIVE 2.0KW INPUT: 10.5A/0.2A 3 PH/1 PH 200/200-230V 50/60HZ OUTPUT: 11A 3PH 170V 0-240HZ The Mitsubishi MDS-D-SVJ3-20 is a high-performance servo drive designed for precise control of Mitsubishi's AC servo motors. With a rated output power of 200W, this drive is engineered to deliver reliable and accurate motion control for a variety of industrial applications, including robotics, CNC machines, and automated production systems. It features advanced control algorithms and high-speed processing capabilities to ensure smooth and responsive operation. The MDS-D-SVJ3-20 is equipped with multiple communication interfaces and flexible control modes, making it a versatile choice for integrating into sophisticated automation setups.

Technical Specifications:

• Model: MDS-D-SVJ3-20
• Type: Servo Drive
• Rated Output Power: 200W
• Input Voltage: 200V AC (±10%)
• Rated Current: 1.0A (continuous)
• Feedback Device Compatibility: 17-bit encoder
• Control Method: Vector control, speed control, and position control
• Operating Temperature Range: 0°C to 55°C
• Operating Humidity Range: 0% to 85% RH (non-condensing)
• Protection Class: IP20
• Dimensions: 120 mm (W) x 180 mm (H) x 130 mm (D)
• Weight: Approximately 2.5 kg
• Communication Interfaces: Pulse command input, analog input, and optional communication ports
• Features: Advanced control algorithms, built-in diagnostic functions, and programmable parameters
• Compliance: CE, RoHS
