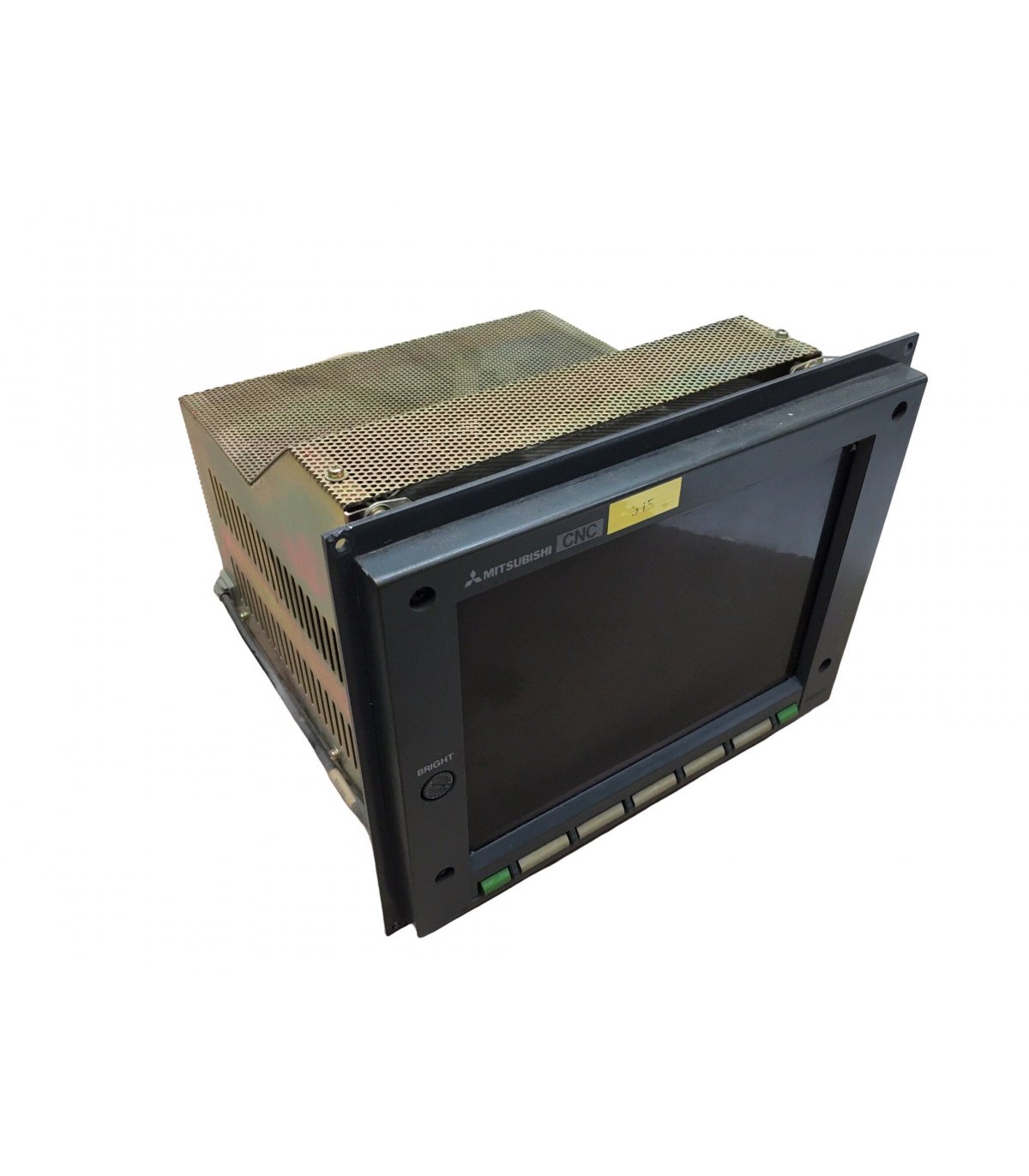

Mitsubishi MDT962B-1A CNC System Display MDT962B1A

Description:

The Mitsubishi MDT962B-1A CNC system display is an industrial monitor used in Mitsubishi CNC control systems to provide operator interface, machine status visualization, and control feedback. It is typically a monochrome CRT display (or modern LCD replacement) installed in CNC machine panels. Maintenance teams and system integrators use this unit for replacement, retrofit, and upgrades to maintain visibility and usability of legacy Mitsubishi CNC machines.

Applications:

The Mitsubishi MDT962B-1A display is used in CNC machining centers, milling machines, lathes, and industrial automation systems where Mitsubishi CNC controls (such as M64, E60, E68) require a visual interface for operators. It provides real-time feedback for machine operation, program monitoring, and system diagnostics in manufacturing environments.

Technical Specifications:

• Manufacturer Part Number (MPN): MDT962B-1A / MDT962B1A
• Product Type: CNC System Display / Industrial Monitor
• Display Type: Originally monochrome CRT (commonly replaced with LCD)
• Screen Size: ~9-inch display class
• Input Signal: TTL monochrome video with sync (typical CNC interface)
• Power Input: 110–220 V AC (model dependent)
• Compatibility: Mitsubishi CNC systems (M64, E60, E68, etc.)
• Mounting: Panel mount within CNC control cabinet
• Function: Machine interface display for CNC operation
• Construction: Industrial open-frame monitor assembly
• Application: CNC visualization, control interface, diagnostics

Common Replacements:

• Mitsubishi MDT962B-2A display variant
• LCD upgrade kits (e.g., QES1508-101 replacement monitors)
• Generic 9-inch CNC LCD retrofit display modules
