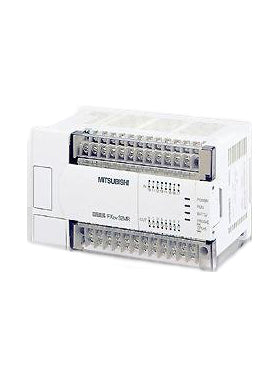

Mitsubishi MELSEC FX2N-48MR-001 Programmable Logic Controller FX2N48MR001

Description:

The Mitsubishi FX2N-48MR-001 is a programmable logic controller (PLC) base unit from the MELSEC-FX2N series, designed for reliable industrial automation control with integrated digital I/O and relay outputs. Commonly installed in control panels, production lines, conveyor systems, and packaging machinery, it provides stable logic processing with flexible expansion capability. Maintenance teams, system integrators, and OEMs use this PLC for system control, retrofits, and replacement of legacy controllers in applications requiring dependable and scalable automation performance.

Applications:

This Mitsubishi PLC is used in industrial automation environments requiring reliable control of medium-scale machines and processes. Typical applications include manufacturing equipment, conveyor systems, packaging machinery, assembly lines, and process control systems where consistent logic execution and integration with sensors and actuators are essential for maintaining uptime and operational efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): FX2N-48MR-001
• Product Type: Programmable Logic Controller (PLC) Base Unit
• Series: MELSEC-FX2N
• Total I/O Points: 48 (24 inputs, 24 outputs)
• Input Type: Digital DC (24 V)
• Output Type: Relay outputs
• Power Supply: 100–240 VAC
• Program Memory: Up to ~8K–16K steps (model dependent)
• Processing Speed: ~0.08 µs basic instruction
• Communication Port: RS-422 (expandable to RS-232/RS-485)
• Expansion Capability: Supports multiple FX2N expansion modules (I/O, analog, communication)
• Special Function Support: High-speed counters, positioning modules, temperature modules
• Mounting Type: DIN rail mount
• Operating Temperature: 0 °C to 55 °C
• Dimensions: Approx. 87 × 90 × 182 mm
• Protection Class: IP10–IP20

Common Replacements:

• Mitsubishi FX3U-48MR/ES-A
• Mitsubishi FX3G-40MR/ES-A
• Siemens S7-1200 6ES7214-1AG40-0XB0
