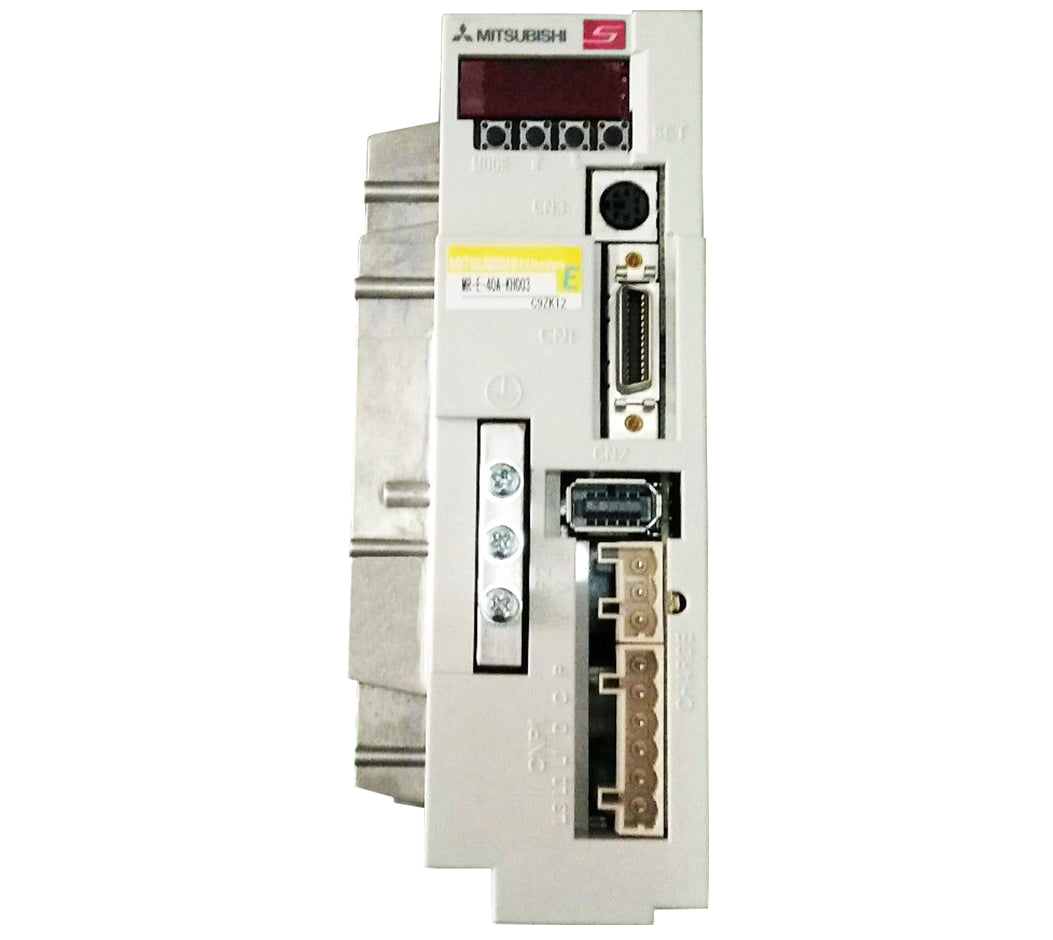

Mitsubishi MR-E-40A-KH003 AC Servo Drive MRE40AKH003

Description:

MRE40AKH003 GENERAL-PURPOSE AC SERVO MR-E SERIES SUPER SERVO AMPLIFIER 2.6 AMP 3 PHASE 230 VAC 50/60 HZ SINGLE PHASE 4 AMP 2.3 AMP 1 PHASE 170 VAC 0 - 360HZ The Mitsubishi MR-E-40A-KH003 is a high-performance AC servo drive designed for precise motion control in industrial automation applications. With a rated output power of 400W, this servo drive is engineered to deliver reliable and accurate control for a variety of AC servo motors. It features advanced control algorithms and high-speed processing to ensure smooth and responsive operation, making it suitable for applications such as robotics, CNC machines, and automated production systems. The MR-E-40A-KH003 integrates seamlessly with Mitsubishi's servo motors, offering excellent performance and ease of integration.

Technical Specifications:

• Model: MR-E-40A-KH003
• Type: AC Servo Drive
• Rated Output Power: 400W
• Input Voltage: 200V AC (±10%)
• Rated Current: 2.0A (continuous)
• Feedback Device Compatibility: 17-bit encoder
• Control Method: Vector control, position control, and speed control
• Operating Temperature Range: 0°C to 55°C
• Operating Humidity Range: 0% to 85% RH (non-condensing)
• Protection Class: IP20
• Dimensions: 120 mm (W) x 180 mm (H) x 130 mm (D)
• Weight: Approximately 3.0 kg
• Communication Interfaces: Pulse command input, analog input, and optional communication ports
• Features: Advanced control algorithms, built-in diagnostic functions, programmable parameters, and dynamic braking
• Compliance: CE, RoHS
