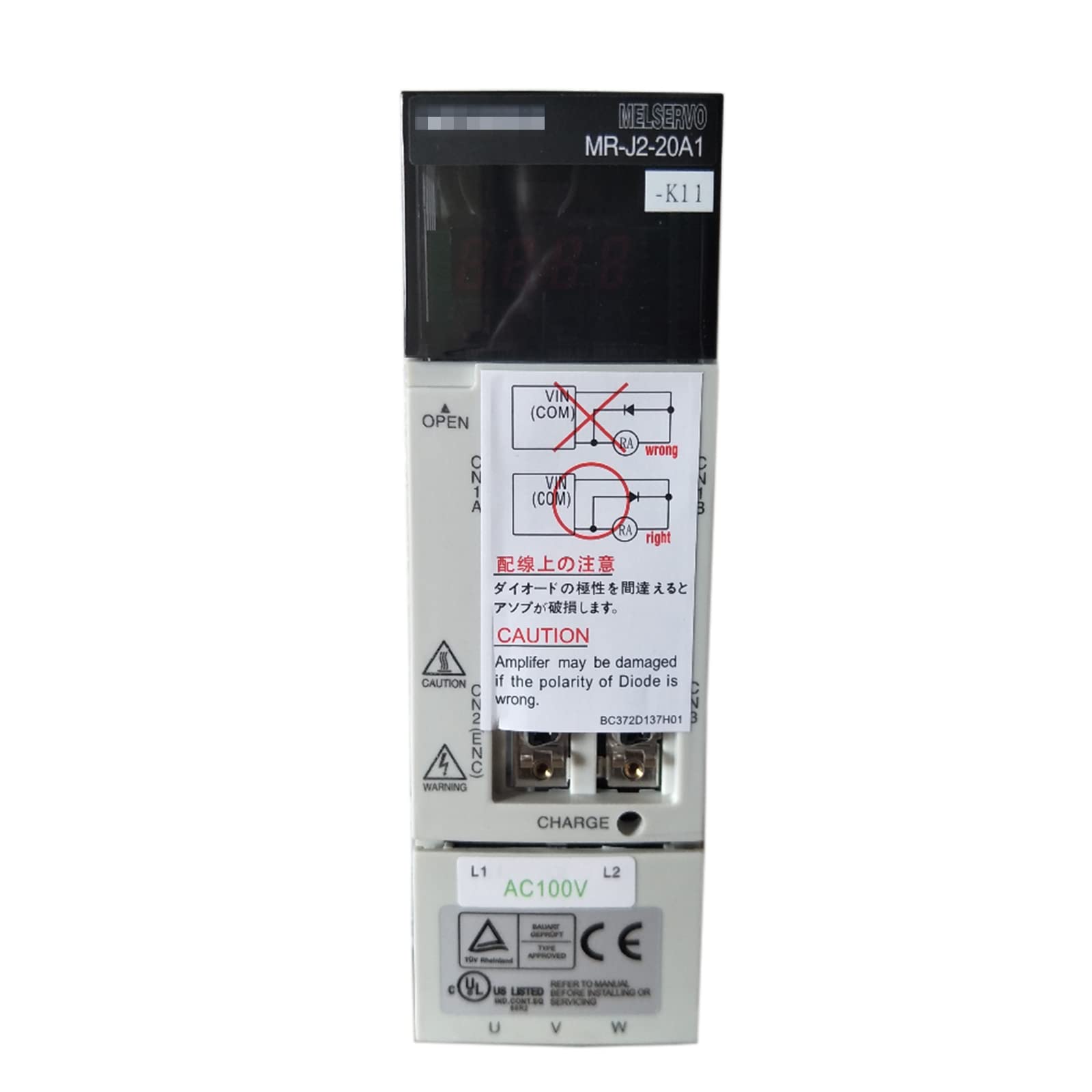

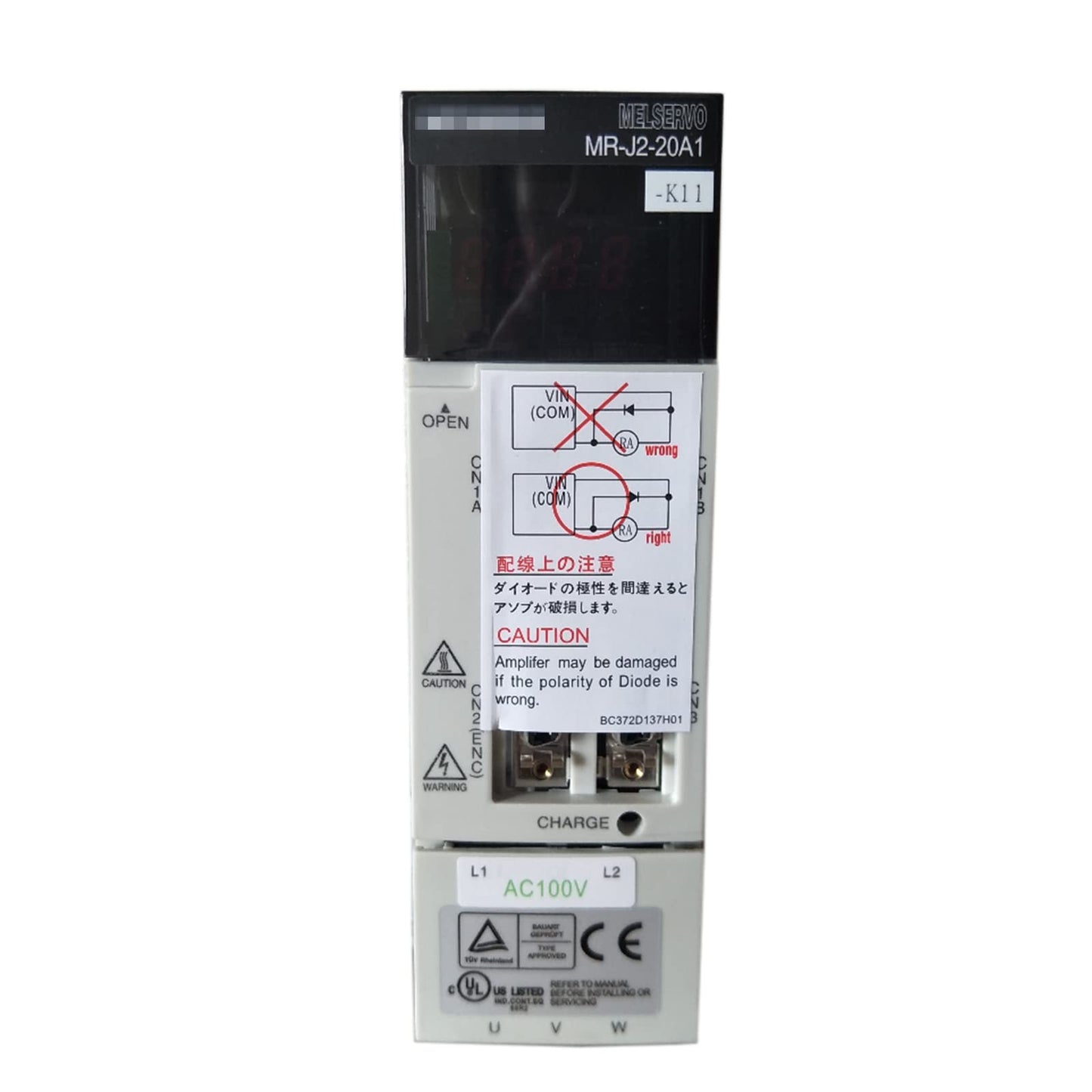

Mitsubishi MR-J2-20A1-K11 AC Servo Drive MRJ220A1K11

Description:

The Mitsubishi MR-J2-20A1-K11 is a 200W AC servo amplifier from the MR-J2 series, equipped with a built-in positioning function and integrated keypad (K-type). Designed for compact and precise motion control, it is suitable for a range of industrial automation systems including conveyors, labeling machines, and compact robotics. This model supports analog voltage and pulse train input and works seamlessly with Mitsubishi’s HC-series servo motors, delivering reliable torque, speed, and positioning performance.

TECHNICAL SPECIFICATIONS:

Model: MR-J2-20A1-K11
Series: MR-J2
Rated Output: 200W (0.2 kW)
Input Voltage: Single-phase 200–230V AC, 50/60 Hz
Control Interface: Analog voltage and pulse train input
Built-in Display: Keypad interface (K11 type) for parameter setup and diagnostics
Compatible Motors: Mitsubishi HC series (200W class)
Encoder Feedback: Incremental encoder (typically 131072 ppr)
Cooling Method: Natural convection
Mounting: Panel mount (vertical orientation)
Protective Features: Overcurrent, overvoltage, regenerative error, overload, encoder error
Positioning Control: Built-in (point table type)
Ambient Temperature: 0°C to 55°C (32°F to 131°F)
Dimensions: Approx. 70 mm x 168 mm x 160 mm (W x H x D)
Weight: Approx. 1.5 kg (3.3 lbs)
