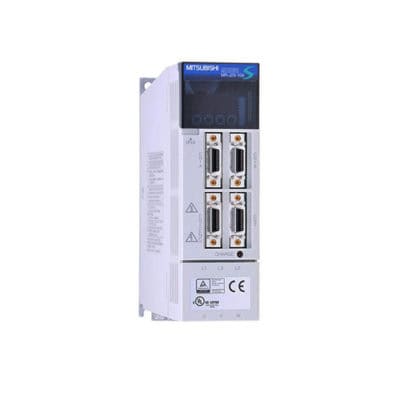

Mitsubishi MR-J2S-100A AC Servo Drive MRJ2S100A

Description:

The Mitsubishi MR‑J2S‑100A AC Servo Drive is a digital AC servo amplifier used to precisely control Mitsubishi servo motors for speed, position, and torque in automated systems. Commonly installed in CNC machines, robotics, packaging equipment, and automated assembly lines where motion accuracy and dynamic response are required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system upgrades to improve motion control performance and reliability.

Applications:

The Mitsubishi MR‑J2S‑100A servo drive is widely used in industrial automation applications to manage motion control tasks such as axis positioning, speed regulation, and torque control. It is deployed in machining centers, pick‑and‑place robots, gantry systems, conveyor positioning, labelers, and printing equipment to execute controlled motion with smooth response and high precision. With advanced control algorithms and feedback support, it optimizes motor performance in demanding production environments.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: MR‑J2S‑100A
• Product Type: AC Servo Drive / Digital Servo Amplifier
• Series: MR‑J2S
• Input Voltage: 200–230 VAC, three‑phase input
• Rated Output Current: ~7.0 A (model dependent)
• Control Method: Digital servo control with feedback support
• Command Input: Pulse train or network interface (model dependent)
• Feedback Support: Encoder (incremental)
• Protection Features: Overcurrent, overvoltage, overtemperature, phase loss protection
• Cooling: Built‑in cooling fan with heat‑sink
• Mounting: Panel / cabinet installation
• Application: Precision motion control in automated systems

Common Replacements:

• Mitsubishi MR‑J2S‑200A (higher power variant)
• Mitsubishi MR‑J2S‑40A (lower power variant)
• Yaskawa SGDV‑R90A01A Servo Drive
