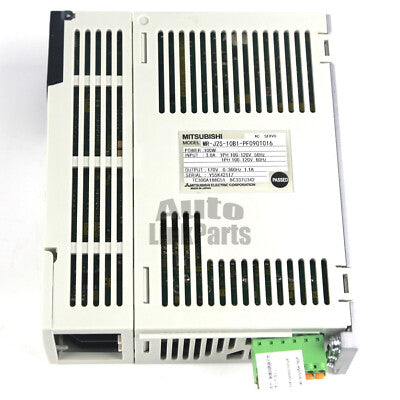

Mitsubishi MR-J2S-10B1-PF090T016 AC Servo Drive MRJ2S10B1PF090T016

Description:

The Mitsubishi MR-J2S-10B1-PF090T016 AC Servo Drive is used in industrial motion control systems to provide precise control of servo motor speed, torque, and positioning. Commonly installed in CNC machinery, automated assembly equipment, and precision positioning systems requiring synchronized and high-accuracy motion control. Maintenance teams, OEMs, and system integrators use this part for system replacement, repair, and maintaining reliable servo-driven operations.

Applications:

The Mitsubishi MR-J2S-10B1-PF090T016 servo drive is widely used in industrial automation environments where compact and high-precision motion control is essential. It is typically applied in robotics, packaging machines, conveyor positioning systems, and small-scale CNC equipment to ensure accurate positioning, smooth operation, and consistent performance.

Technical Specifications:

• Manufacturer Part Number (MPN): MR-J2S-10B1-PF090T016
• Brand: Mitsubishi Electric
• Product Type: AC Servo Drive / Servo Amplifier
• Series: MELSERVO MR-J2S
• Rated Output Power: 0.1 kW
• Input Voltage: 200–230 VAC, 3-Phase
• Control System: Digital Servo Control (Sinusoidal PWM)
• Communication Interface: SSCNET Compatible
• Encoder Type: High-Resolution Encoder Compatible
• Control Modes: Position, Speed, Torque
• Frequency Response: Up to 550 Hz
• Special Configuration: Pre-configured Cable/Connector Variant (PF090T016)
• Protection Features: Overcurrent, Overvoltage, Overload, Overheat
• Cooling Method: Natural / Forced Air Cooling
• Mounting Type: Panel Mount

Common Replacements:

• Mitsubishi MR-J3-10B Servo Drive
• Mitsubishi MR-J4-10B Servo Drive
• Mitsubishi MR-J2S-20B Servo Drive
