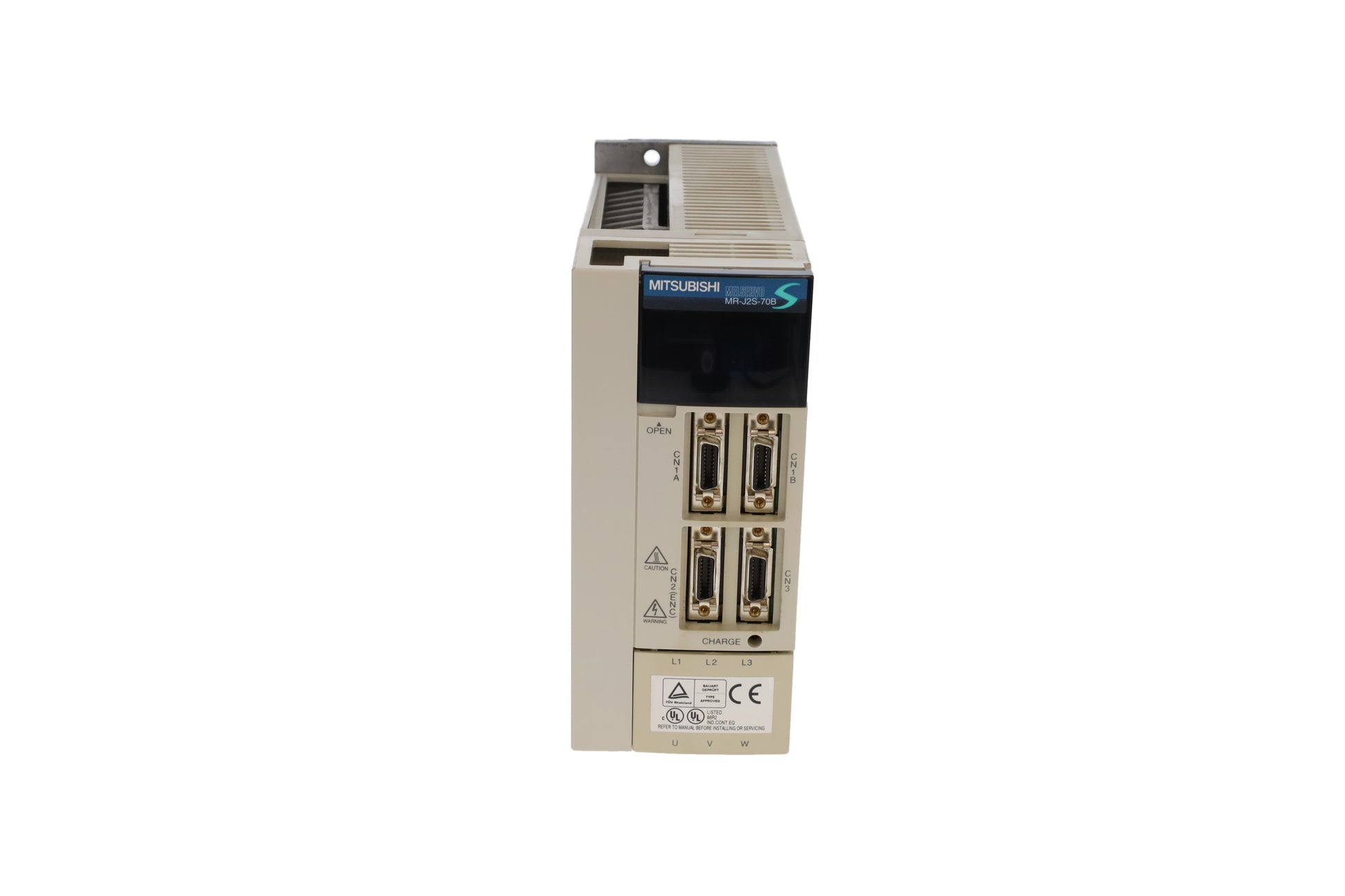

Mitsubishi MR-J2S-70B AC Servo Drive MRJ2S70B

Description:

The Mitsubishi MR-J2S-70B is a high-performance AC servo amplifier designed for precision motion control applications in industrial automation. With a rated output of 700W, it supports both SSCNET and analog/ pulse train command inputs, offering flexibility for integration with various control systems. Part of the MR-J2S series, this amplifier is known for its fast response, easy setup, and reliable operation. It is ideal for use in applications such as robotics, CNC machines, conveyors, and packaging equipment.

TECHNICAL SPECIFICATIONS:

Model: MR-J2S-70B
Series: MR-J2S
Rated Output: 700W
Input Voltage: 3-phase 200–230V AC, 50/60Hz
Control Method: Sine-wave PWM control, current control system
Command Interface: SSCNET, pulse train, analog voltage
Compatible Motors: Mitsubishi HC and HA series (e.g., HC-SFS, HC-RFS series)
Encoder Feedback: Incremental encoder (131072 pulses/rev)
Protective Functions: Overcurrent, overvoltage, overload, encoder error, regeneration error
Cooling Method: Fan-cooled
Mounting: Panel mount (vertical)
Communication: RS-232C (for setup/config)
Ambient Temperature: 0°C to 55°C (32°F to 131°F)
Dimensions: Approx. 90 mm x 168 mm x 180 mm (W x H x D)
Weight: Approx. 2.5 kg (5.5 lbs)
