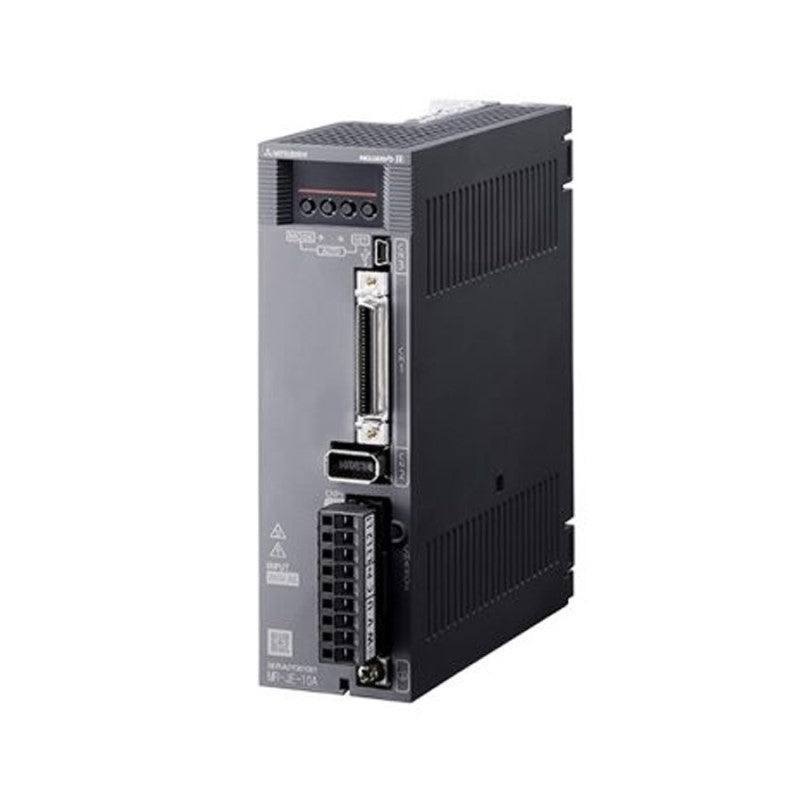

Mitsubishi MR-JE-100A ( MRJE100A ) AC Servo Amplifier Motor Drive

Description:

MRJE100A SERVO AMP 1KW SINGLE PHASE INPUT OR 3-PHASE INPUT / 200VAC-240VAC GENERAL PURPOSE The Mitsubishi MR-JE-100A is a versatile and reliable servo amplifier designed for high-performance motion control applications. This compact unit provides precise control over servo motors, ensuring smooth and accurate operation in various industrial automation settings. It supports a range of communication protocols, making it compatible with different control systems. The MR-JE-100A features a user-friendly interface for easy configuration and tuning, and its robust design ensures durability in demanding environments. It is ideal for applications requiring high-speed and high-precision movements, such as robotics, CNC machinery, and automated production lines.

Technical Specifications:

• Model: MR-JE-100A
• Type: Servo Amplifier
• Power Supply Voltage: 200-230V AC, Single Phase
• Current Rating: 1.0 A (Continuous)
• Output Frequency: 0 to 400 Hz
• Control Type: Digital Servo Control
• Communication: CC-Link, Profibus-DP (optional)
• Feedback Type: Incremental Encoder
• Protection Features: Overload Protection, Overvoltage Protection, Undervoltage Protection
• Dimensions (W x H x D): Approximately 90 x 130 x 150 mm
• Weight: Approximately 1.5 kg
• Cooling Method: Natural Convection
