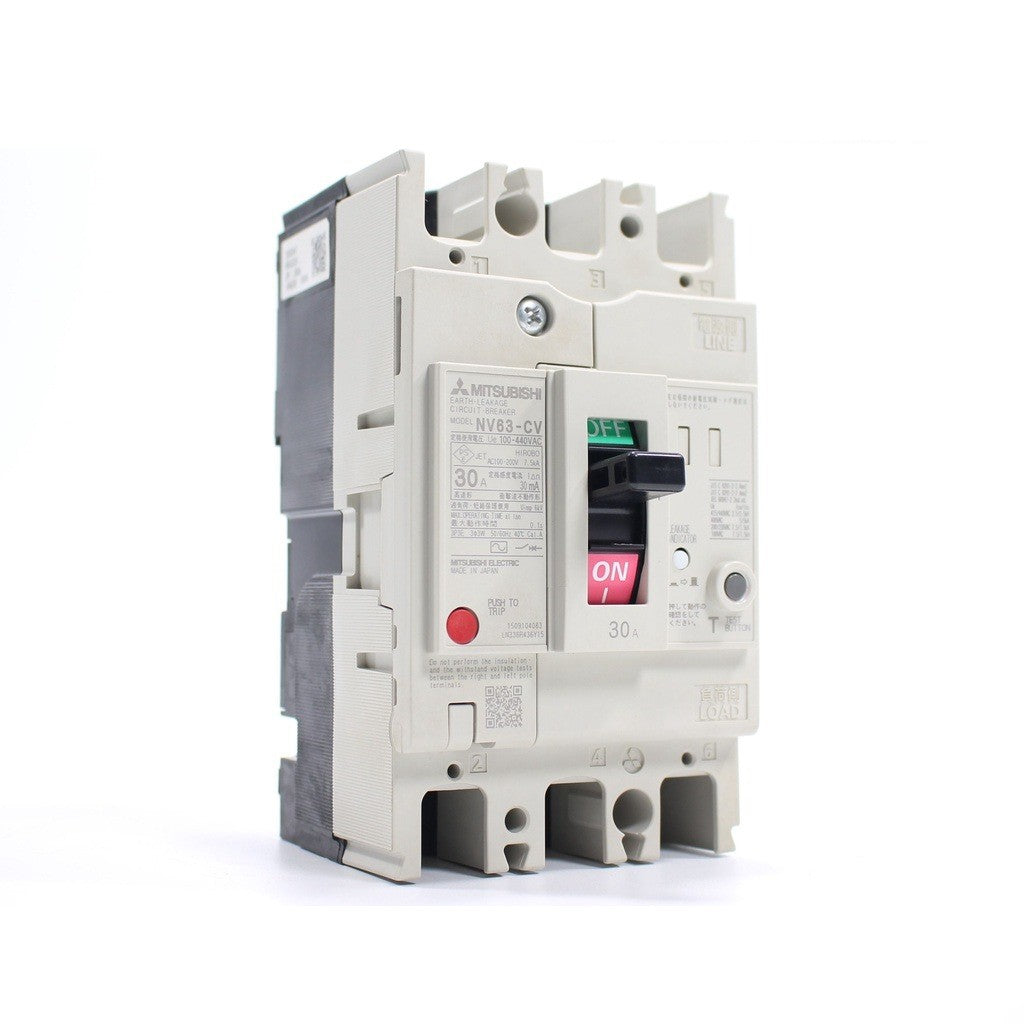

Mitsubishi NV63-CVF Circuit Breaker 3P 50A NV63CVF

Description:

NV63CVF3P50A DISCONTINUED BY MANUFACTURER CIRCUIT BREAKER 50 AMP 3 POLE 100-440 V AC 6 KV The Mitsubishi NV63-CVF is a robust 3-pole circuit breaker designed to provide reliable overcurrent protection and short-circuit interruption for electrical circuits. With a rated current of 50A, this circuit breaker is ideal for use in industrial and commercial applications where reliable circuit protection is crucial. Its three-pole design allows it to protect three-phase systems, ensuring comprehensive coverage for all phases. The NV63-CVF features advanced thermal and magnetic trip mechanisms for enhanced safety and reliability, and its compact design allows for easy integration into control panels and distribution boards.

Technical Specifications:

• Model: NV63-CVF
• Type: 3-Pole Circuit Breaker
• Rated Current: 50A
• Breaking Capacity: 10 kA (at 400V AC)
• Trip Mechanism: Thermal-magnetic
• Mounting Type: DIN rail mountable
• Voltage Rating: 400V AC (nominal)
• Poles: 3
• Insulation Resistance: ≥ 2 MΩ (at 500V DC)
• Operating Temperature Range: -5°C to 40°C
• Protection Class: IP20
• Dimensions: 90 mm (W) x 130 mm (H) x 70 mm (D)
• Weight: Approximately 0.8 kg
• Compliance: CE, IEC 60947-2
