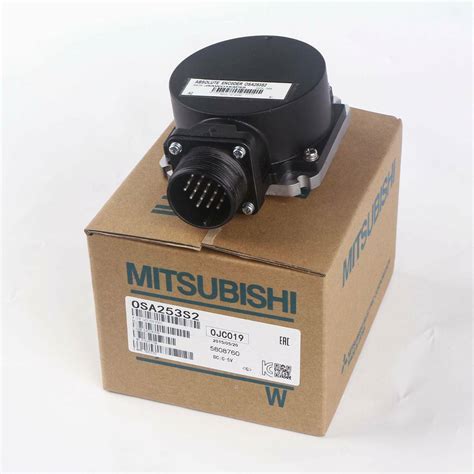

Mitsubishi OSA253S2 Rotary Encoder OSA253S2

Description:

The Mitsubishi OSA253S2 Rotary Encoder is used in industrial motion control systems to provide high-resolution position and speed feedback for servo motors. Commonly installed in Mitsubishi servo motor assemblies, CNC machines, and automated equipment requiring accurate feedback for closed-loop control. Maintenance teams, OEMs, and system integrators use this part for replacement, repair, and maintaining precise motion control performance.

Applications:

The Mitsubishi OSA253S2 rotary encoder is widely used in automation environments where accurate positioning and speed monitoring are critical. It is typically applied in CNC machinery, robotics, packaging systems, and material handling equipment to ensure synchronized motion, improved accuracy, and reliable system operation.

Technical Specifications:

• Manufacturer Part Number (MPN): OSA253S2
• Brand: Mitsubishi Electric
• Product Type: Rotary Encoder
• Encoder Type: Incremental Encoder
• Resolution: High Resolution (Industrial Grade)
• Output Signal: Pulse Output (A/B/Z Channels)
• Supply Voltage: Typically 5 VDC
• Mounting Type: Motor-Mounted
• Compatibility: Mitsubishi Servo Motors
• Feedback Type: Position and Speed Feedback
• Application: Closed-Loop Motion Control Systems
• Operating Environment: Industrial Use

Common Replacements:

• Mitsubishi OSA253 Servo Encoder
• Mitsubishi OSA104S2 Servo Encoder
• Mitsubishi OSA17-060 Servo Encoder
