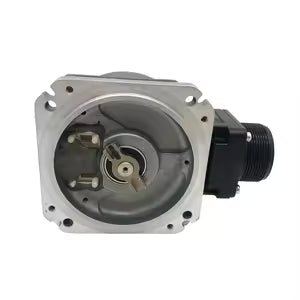

Mitsubishi OSE253 Encoder

Description:

The Mitsubishi OSE253 Encoder is a precision motion feedback device used in industrial automation systems to provide accurate position, speed, and direction information for motion control applications. Commonly paired with Mitsubishi servo drives and motors, it ensures synchronized motion and high‑resolution feedback for automated machinery. Maintenance teams, system integrators, and OEMs use this encoder for replacements, upgrades, and new system integrations where dependable feedback is essential for precise motion control and process accuracy.

Applications:

This Mitsubishi encoder is used in industrial automation environments requiring high‑accuracy position and speed feedback. Typical applications include CNC machining centers, robotics, automated assembly lines, conveyor systems, packaging machinery, and material handling equipment where precise motion control, synchronization, and verification of motor position and speed are critical for product quality and system performance.

Technical Specifications:

• Manufacturer Part Number (MPN): OSE253
• Product Type: Motion Control Encoder
• Encoder Type: Incremental/absolute feedback (model dependent)
• Resolution: High‑resolution position feedback (varies by configuration)
• Signal Output: Differential line driver (A, B, Z channels)
• Mounting Type: Shaft or flange mounted (model dependent)
• Operating Voltage: Typically 5 VDC (drive‑supplied)
• Feedback Channels: A/B/Z signals for motion control feedback
• Operating Temperature: ‑10 °C to 60 °C
• Storage Temperature: ‑20 °C to 70 °C
• Protection Class: IP50 housing
• Interface: High‑speed signal output compatible with Mitsubishi servo drives

Common Replacements:

• Mitsubishi OSE253S2 (variant)
• Heidenhain ERN 1387 Encoder
• Panasonic A6 Series Encoder
