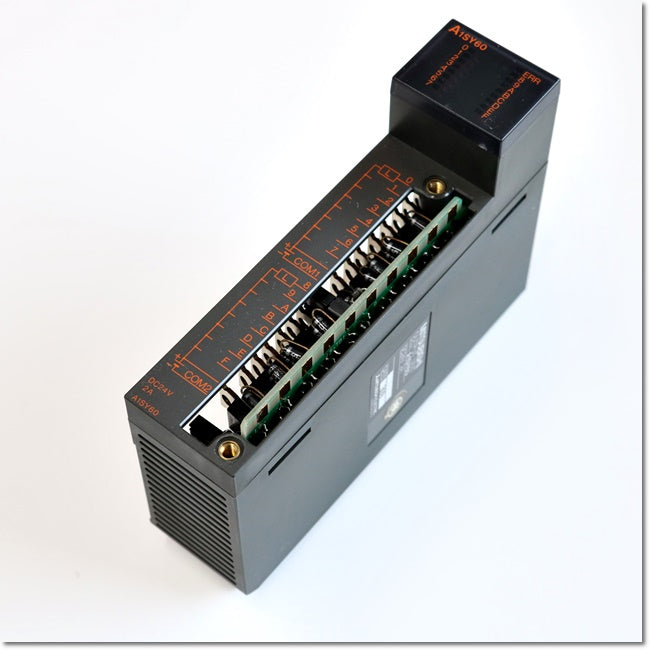

Mitsubishi Output Module A1SY60 16CH Relay 24vdc 2A

Description:

The Mitsubishi A1SY60 Output Module is a 16-channel relay output module designed for industrial automation systems to control external devices such as motors, lights, and alarms. Commonly installed in PLC systems, control panels, and manufacturing automation setups, it provides reliable switching control with a 24 VDC input and a 2A output per channel. Maintenance teams and system integrators use this module for expanding PLC I/O, system control, and equipment replacement in industrial applications that require robust relay switching functionality.

Applications:

The Mitsubishi A1SY60 output module is used in industrial automation systems that require multiple relay outputs for controlling various devices like solenoids, motors, and signal lights. Typical applications include factory automation systems, production lines, assembly machines, and material handling systems where reliable, high-current relay control is necessary for system operation and control.

Technical Specifications:

• Manufacturer Part Number (MPN): A1SY60
• Product Type: Output Relay Module
• Number of Channels: 16
• Input Voltage: 24 VDC
• Output Type: Relay (SPDT)
• Output Current: 2A per channel
• Maximum Switching Power: 48W
• Contact Material: AgSnO2
• Mounting Type: Direct connection to Mitsubishi A1S series PLC
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 75°C
• Protection Class: IP20 (mounting side)
• Mounting Type: DIN rail or panel mount
• Max. Switching Voltage: 250VAC
• Response Time: Fast relay switching

Common Replacements:

• Mitsubishi A1SY60-R2
• Siemens 6ES7 321-1BL00-0AA0
• Allen-Bradley 1756-OB16
