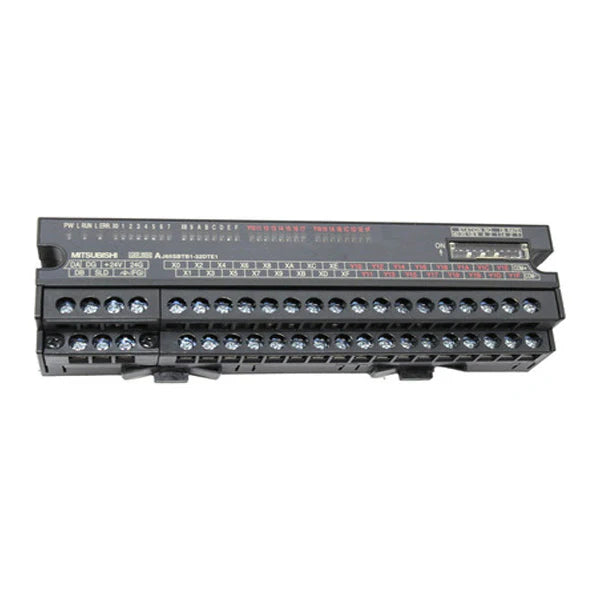

Mitsubishi PLC AJ65SBTB1-32DTE1 CC-Link System Compact Type AJ65SBTB132DTE1

Description:

The Mitsubishi AJ65SBTB1-32DTE1 is a compact CC-Link remote I/O module used in industrial automation systems to provide distributed digital input and output control over a network. Commonly installed in control panels and machine stations, it combines both inputs and outputs in a single unit, allowing PLCs to communicate with field devices across CC-Link networks. Maintenance teams, system integrators, and OEMs use this module for distributed control expansion, system upgrades, and replacement of legacy remote I/O modules.

Applications:

This Mitsubishi CC-Link remote I/O module is used in industrial automation environments requiring decentralized control and efficient wiring. Typical applications include conveyor systems, packaging machinery, robotic cells, assembly lines, and material handling systems where multiple sensors and actuators must be controlled remotely with reliable, real-time communication.

Technical Specifications:

• Manufacturer Part Number (MPN): AJ65SBTB1-32DTE1
• Product Type: CC-Link Remote I/O Module (Combined Input/Output)
• Series: MELSEC CC-Link
• Total I/O Points: 32 (16 inputs, 16 outputs)
• Input Type: Digital DC (24 V, approx. 5 mA per point)
• Output Type: Transistor outputs (source type)
• Output Current: Up to 0.5 A per point
• Rated Voltage: 24 V DC (input and output)
• Network: CC-Link distributed I/O
• Occupied Stations: 1 station
• Communication Method: CC-Link network (RS-485 based)
• Wiring Type: Screw terminal block
• Internal Current Consumption: ~0.05 A (5 V DC)
• Mounting Type: Panel / DIN rail mount
• Dimensions: Approx. 179 × 50 × 40 mm
• Weight: Approx. 0.17 kg
• Operating Temperature: 0 °C to 55 °C
• Protection Class: IP20

Common Replacements:

• Mitsubishi AJ65SBTB1-32DT1 (sink output version)
• Mitsubishi AJ65SBTB1-32DT2
• Allen-Bradley 1794-IB16XOB16P (Flex I/O combined module)
