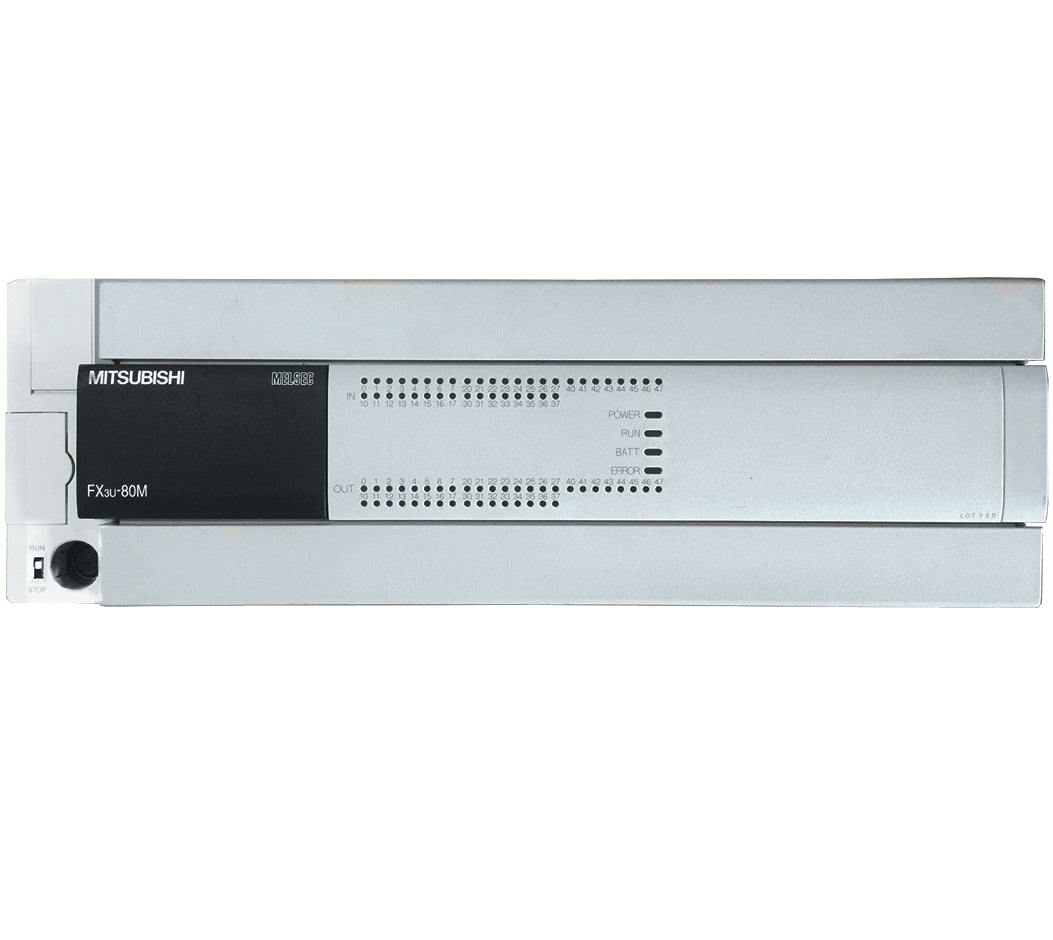

Mitsubishi PLC FX3U-80MT/ES-A Programmable Logic Controller FX3U80MT/ESA

Description:

FX3U80MTESA PROGRAMMABLE CONTROLLER 100-240 V AC 50/60 HZ 50 W 2 AMP 30 V DC / 240 V AC OUTPUT 40 OUTPUT 40 INPUT The FX3U-80MT/ES-A is a robust and versatile programmable logic controller (PLC) module from Mitsubishi's FX3U series, designed to deliver high-performance control for complex automation tasks. This model features 80 discrete I/O points, including 40 digital inputs and 40 transistor outputs, making it ideal for applications requiring extensive I/O capacity within a compact footprint. The FX3U-80MT/ES-A is equipped with advanced processing power and built-in EEPROM memory, ensuring reliable operation and ease of integration into various industrial systems. Its durable design and flexible configuration options make it suitable for demanding environments where both performance and space efficiency are crucial.

Technical Specifications:

• Model: FX3U-80MT/ES-A
• I/O Configuration:
• Inputs: 40 digital inputs (24V DC)
• Outputs: 40 transistor outputs (24V DC, 0.5A per point)
• Power Supply: 24V DC (±10%)
• Program Capacity: 16K steps
• Memory Type: EEPROM
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -25°C to 65°C
• Dimensions (W x H x D): 180 x 90 x 80 mm
• Weight: Approximately 1.0 kg
• Mounting Type: DIN rail mount
