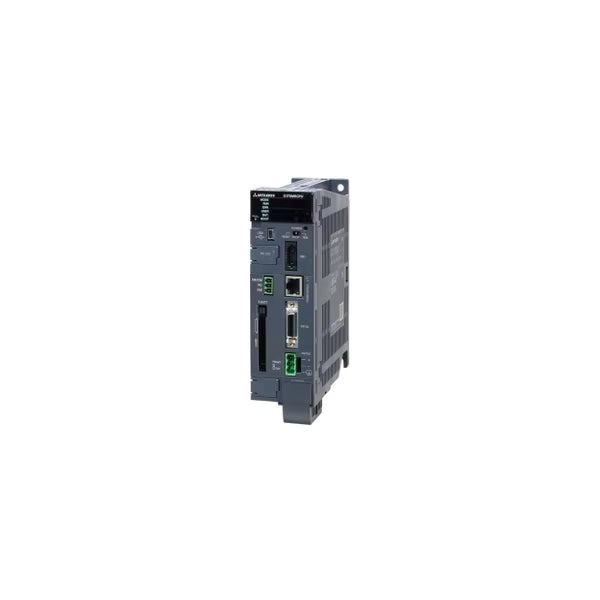

Mitsubishi PLC Q170MCPU-S1 Q170MCPUS1

Description:

The Mitsubishi Q170MCPU-S1 PLC Motion Controller is used in industrial automation systems for precise multi-axis motion control and machine coordination. Commonly installed in CNC machines, robotics, and high-speed automated production equipment requiring synchronized motion and positioning. Maintenance teams, OEMs, and system integrators use this part for system expansion, retrofit, and replacement of motion control units.

Applications:

The Mitsubishi Q170MCPU-S1 is widely used in advanced automation environments such as CNC machining centers, electronic assembly lines, packaging systems, and robotic applications where coordinated multi-axis control is critical. It enables high-speed, high-accuracy positioning and seamless integration with Mitsubishi Q Series PLC systems for complex motion tasks.

Technical Specifications:

• Manufacturer Part Number (MPN): Q170MCPU-S1
• Brand: Mitsubishi Electric
• Product Type: PLC Motion Controller
• Series: MELSEC-Q Series
• Control Axes: Up to 8 axes (model dependent)
• Control Method: Positioning Control (Point-to-Point, Linear Interpolation, Circular Interpolation)
• Program Capacity: Approx. 60K steps
• Communication: Backplane bus (Q Series rack)
• Compatible Modules: Mitsubishi Q Series PLC modules
• Mounting Type: Rack-mounted (base unit installation)
• Power Supply: Supplied via PLC base unit
• Application: Multi-axis synchronized motion control

Common Replacements:

• Mitsubishi Q173MCPU
• Mitsubishi Q172HCPU
• Mitsubishi Q170MSCPU
