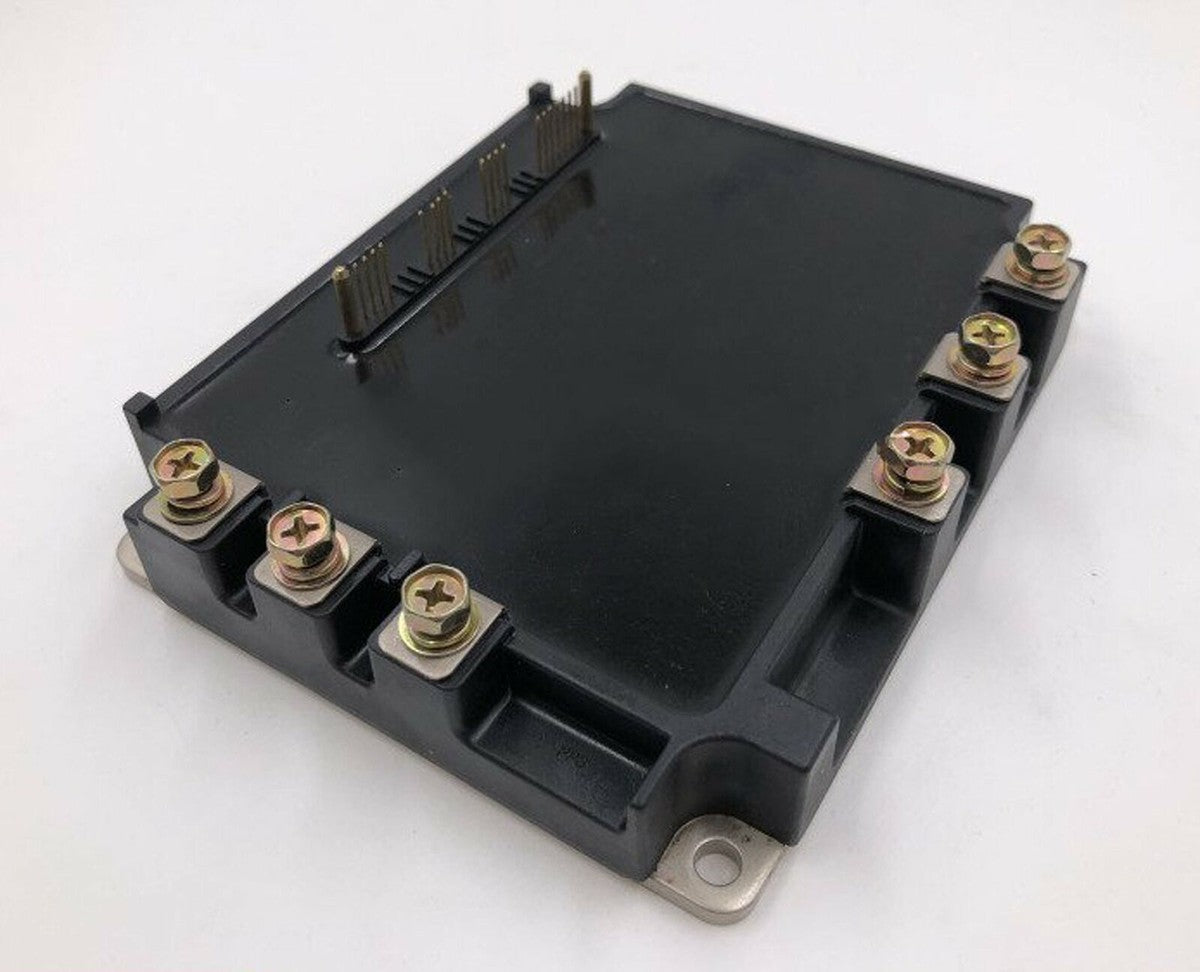

Mitsubishi PM150CSD-120 IGBT Module PM150CSD120

Description:

The Mitsubishi PM150CSD-120 IGBT Module is used in industrial power electronics systems to switch and control high voltage and current in inverter-driven applications. Commonly installed in motor drives, CNC machines, and power conversion equipment requiring efficient and stable switching performance. Maintenance teams, OEMs, and system integrators use this part for repair, retrofit, and replacement of IGBT modules in industrial systems.

Applications:

The Mitsubishi PM150CSD-120 is widely used in industrial automation and power control environments such as variable frequency drives (VFDs), servo drive systems, UPS units, and welding machines where reliable switching and thermal efficiency are essential. It supports consistent performance in demanding applications with high electrical load requirements.

Technical Specifications:

• Manufacturer Part Number (MPN): PM150CSD-120
• Brand: Mitsubishi Electric
• Product Type: IGBT Module
• Rated Current: 150 A
• Voltage Rating: 1200 V
• Configuration: Integrated IGBT module
• Mounting Type: Screw-mounted
• Cooling Method: Heatsink / forced air cooling
• Application: Inverters, motor drives, and power control systems
• Package Type: Industrial power module
• Operating Environment: High-power industrial applications

Common Replacements:

• Mitsubishi PM200CSD120
• Mitsubishi PM150CSD060
• Mitsubishi CM150DU-24F
