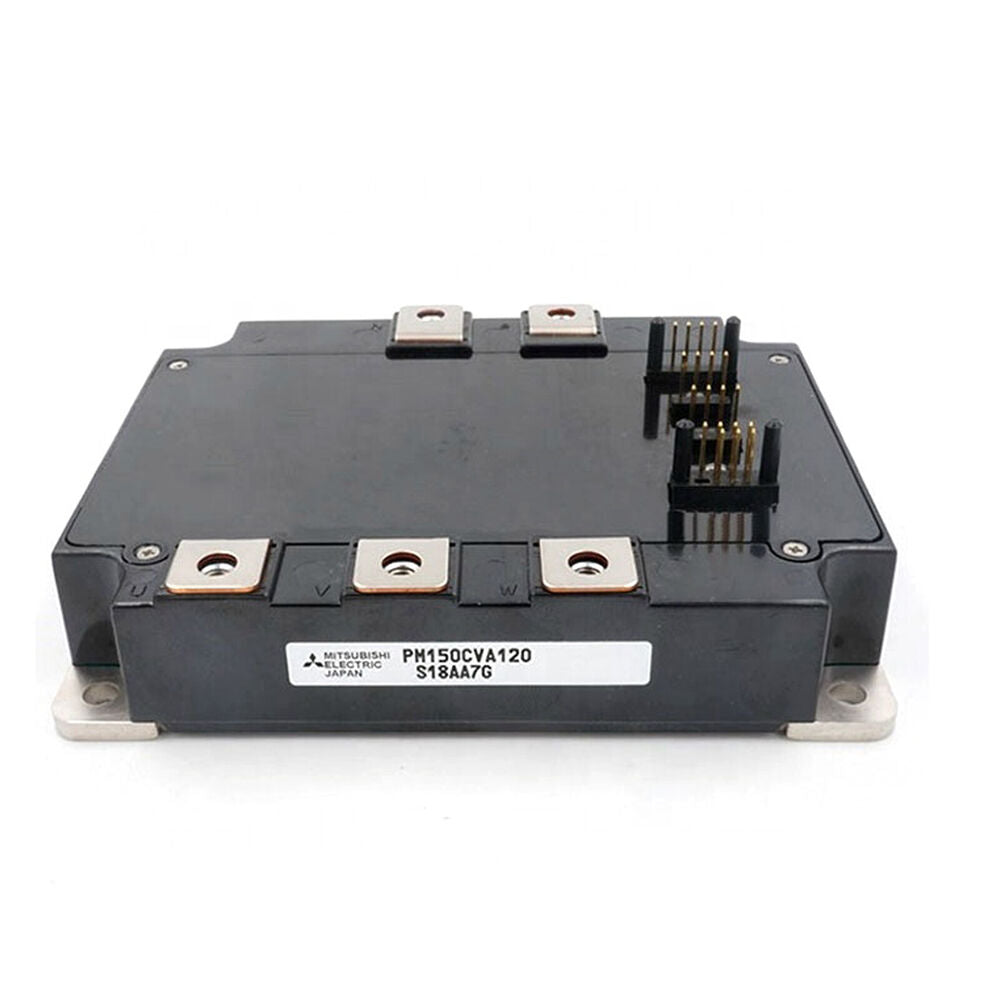

Mitsubishi PM150CVA120 IGBT Module PM150CVA120

Description:

The Mitsubishi PM150CVA120 is an intelligent power module (IPM) designed for high-power switching and motor control applications in industrial automation systems. It integrates IGBT power devices, gate drive circuitry, and protection functions into a single compact module. Commonly used in inverters, servo drives, and power conversion systems, it enables efficient and reliable control of high-power electrical loads.

Applications:

This Mitsubishi power module is used in industrial automation systems requiring efficient power conversion and motor control. Typical applications include variable frequency drives (VFDs), servo systems, uninterruptible power supplies (UPS), industrial inverters, and automated production equipment where high current handling and reliable switching are critical to system performance.

Technical Specifications:

• Manufacturer Part Number (MPN): PM150CVA120
• Product Type: Intelligent Power Module (IPM) / IGBT Module
• Manufacturer: Mitsubishi Electric
• Configuration: 3-phase inverter output module
• Rated Voltage: 1200 V
• Rated Current: 150 A
• Technology: IGBT (integrated with free-wheel diodes)
• Switching Frequency: Up to ~20 kHz
• Integrated Functions: Gate drive + protection logic
• Protection Features: Short-circuit, over-temperature, under-voltage
• Package Type: Flat-base insulated module
• Cooling: Heatsink-mounted
• Mounting Type: Panel / heatsink mount
• Application Class: Motor drives, inverters, power supplies
• Status: Discontinued / legacy module

Common Replacements:

• Mitsubishi PM150CVA060 (600V variant)
• Mitsubishi PM150DSA120
• Mitsubishi CM150DY series (discrete IGBT alternative)
