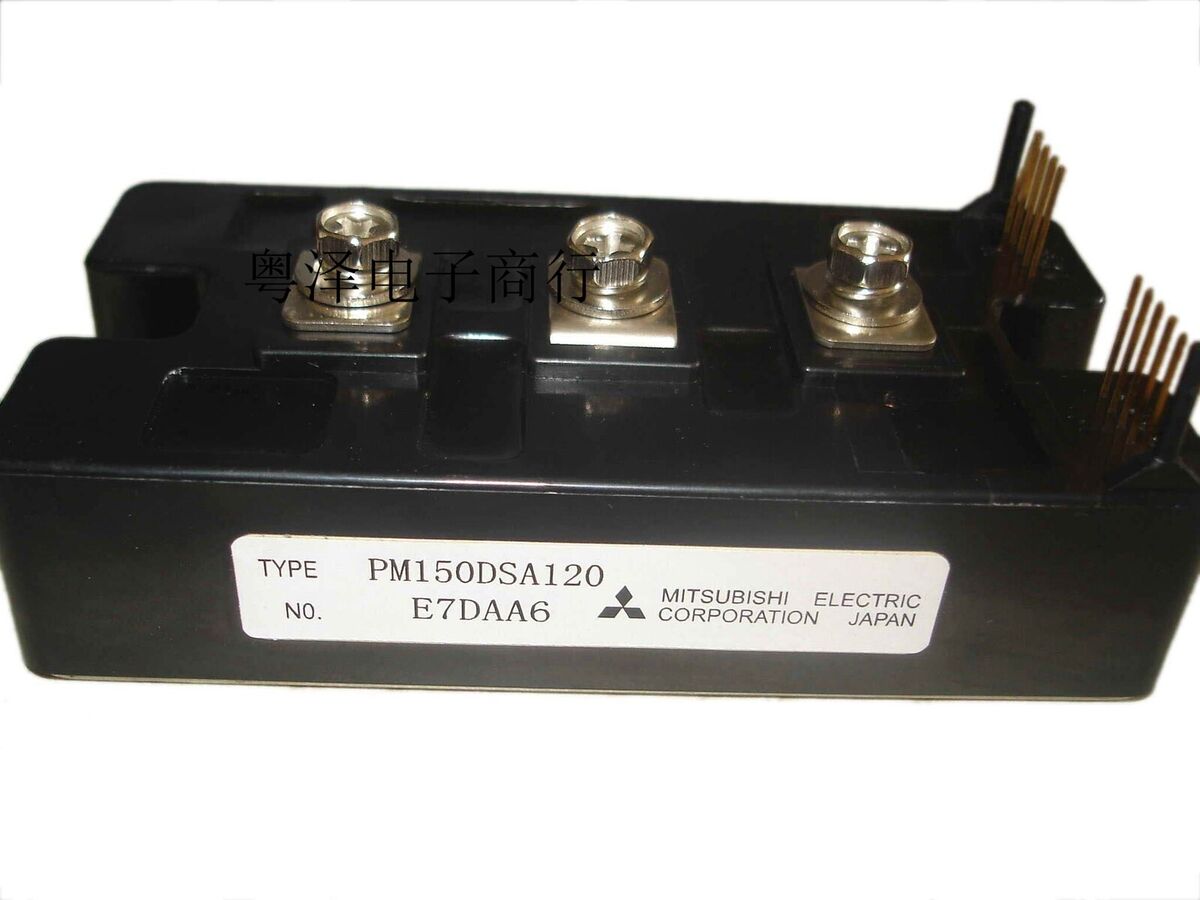

Mitsubishi PM150DSA120 Power Supply Module

Description:

PM150DSA120 DISCONTINUED BY MANUFACTURER IGBT INTELLIGENT POWER MODULE TRANSISTOR POLARITY: N OPERATING TEMPERATURE: -20 TO 100 DEGREES C SUPPLY VOLTAGE: 800 V ISOLATION VOLTAGE: 2500 VRMS CURRENT: 150 A The Mitsubishi PM150DSA120 is a high-performance power supply module designed to deliver stable and reliable power for industrial automation systems. This module is part of Mitsubishi’s PM series, known for its efficiency and durability. The PM150DSA120 provides consistent 24V DC output from a 120V AC input, making it suitable for a variety of automation tasks where reliability and high performance are critical. Its robust design ensures minimal interference and long-term stability, essential for maintaining optimal operation in demanding industrial environments.

Technical Specifications:

• Type: Power supply module
• Output Power: 150W (watts)
• Input Voltage: 120V AC, single-phase
• Output Voltage: 24V DC
• Output Current: 6.3A (amps)
• Efficiency: High efficiency with minimal power loss
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Dimensions: 95 x 125 x 125 mm (3.74 x 4.92 x 4.92 inches)
• Weight: Approximately 0.9 kg (1.98 lbs)
• Protection Features: Overload protection, short-circuit protection, and over-temperature protection
• Mounting: DIN rail mount
