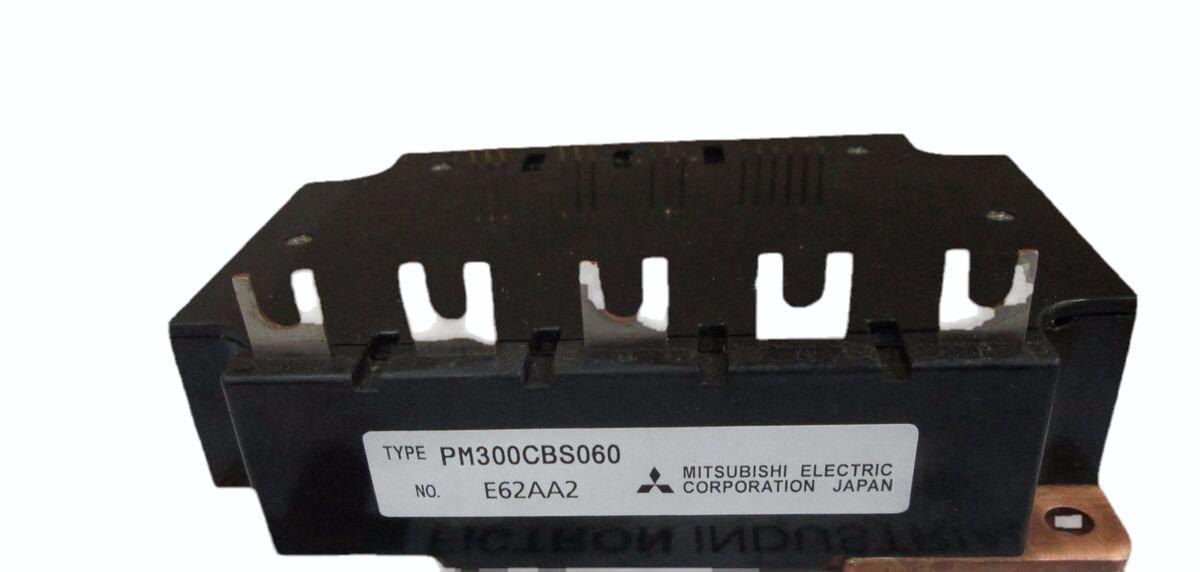

Mitsubishi PM300CBS060 IGBT Supply Power Module PM300CBS060

Description:

The Mitsubishi PM300CBS060 IGBT Power Module is used in industrial power control systems to switch and regulate high-voltage and high-current loads in inverter and motor drive applications. Commonly installed in variable frequency drives, servo drives, UPS systems, and industrial power supplies requiring efficient and reliable power switching. Maintenance teams, OEMs, and system integrators use this part for repair, replacement, and refurbishment of power electronic systems.

Applications:

The Mitsubishi PM300CBS060 module is widely used in industrial environments where high-power conversion and control are critical. It is commonly applied in motor drives, inverter systems, welding equipment, uninterruptible power supplies (UPS), and heavy-duty automation systems where stable switching performance and thermal reliability are required.

Technical Specifications:

• Manufacturer Part Number (MPN): PM300CBS060
• Product Type: IGBT Power Module
• Rated Current: 300 A
• Collector-Emitter Voltage (Vces): 600 V
• Configuration: IGBT module with integrated diodes
• Isolation Voltage: Approx. 2500 VAC
• Mounting Type: Baseplate module
• Cooling Method: External heatsink required
• Operating Temperature Range: -40°C to +125°C (junction)
• Application: Inverters, motor drives, power supplies

Common Replacements:

• Mitsubishi PM200CBS060
• Mitsubishi PM400CBS060
• Mitsubishi CM300DY-24A
