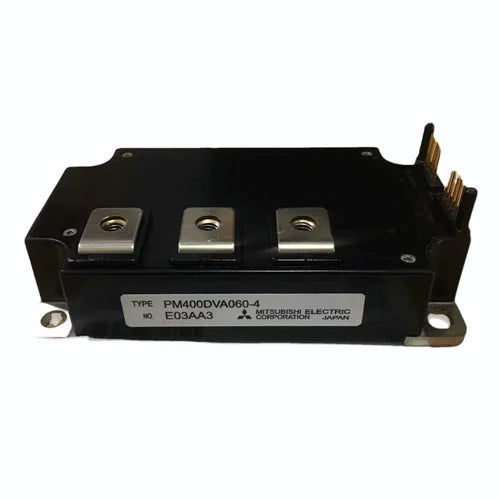

Mitsubishi PM400DVA060-4 Power Supply Module PM400DVA0604

Description:

The Mitsubishi PM400DVA060-4 Power Supply Module is used in industrial inverter and servo drive power control systems for high-current motor drive and power conversion. Commonly installed in variable frequency drives, servo amplifiers, UPS systems, and industrial automation equipment requiring intelligent IGBT power modules. Maintenance teams, OEMs, and system integrators use this module for replacement, repair, or power stage restoration to maintain reliable drive operation and prevent equipment downtime.

Applications:

The Mitsubishi PM400DVA060-4 is used in AC motor inverter drives, servo drive amplifiers, UPS power systems, industrial power supplies, CNC spindle drives, material handling equipment, and factory automation systems requiring high-current intelligent power module switching.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: PM400DVA060-4
• Product Type: Intelligent Power Module (IPM)
• Module Type: IGBT Power Module
• Rated Collector Current: 400 A
• Collector-Emitter Voltage: 600 V
• Configuration: 3-phase inverter bridge
• Built-in Functions: Gate drive and protection circuitry
• Protection: Short-circuit, over-temperature, under-voltage
• Isolation: Insulated baseplate module
• Switching Frequency: Up to 20 kHz
• Mounting: Screw mount to heatsink
• Cooling: External heatsink required
• Application: Inverter and servo drive power stage

Common Replacements:

• Mitsubishi PM400DVA060
• Mitsubishi PM300DVA060
• Mitsubishi CM400DY-24A
