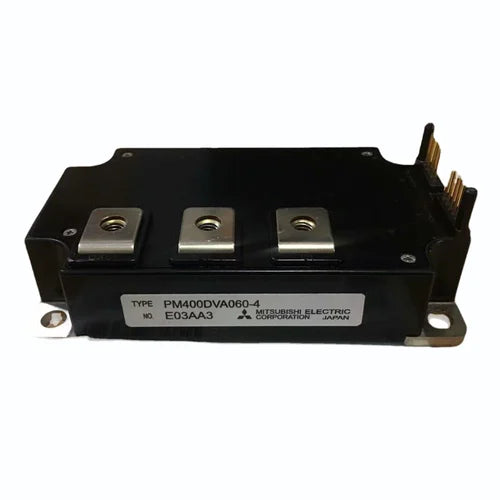

Mitsubishi PM400DVA060-4 IPM Intelligent Power IC IGBT Module 400A 600V PM400DVA0604

Description:

The Mitsubishi PM400DVA060-4 Intelligent Power Module (IPM) is used in industrial power control systems to integrate IGBT switching with built-in protection and control functions. Commonly installed in motor drives, HVAC systems, and inverter-based equipment requiring efficient and reliable power conversion. Maintenance teams, OEMs, and system integrators use this part for repair, retrofit, and replacement of intelligent IGBT modules.

Applications:

The Mitsubishi PM400DVA060-4 is widely used in industrial automation and power electronics applications such as variable frequency drives (VFDs), servo drive systems, air conditioning units, and industrial power supplies. It provides integrated protection features and stable switching performance in systems requiring compact design and high efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): PM400DVA060-4
• Brand: Mitsubishi Electric
• Product Type: Intelligent Power Module (IPM) / IGBT Module
• Rated Current: 400 A
• Voltage Rating: 600 V
• Configuration: Integrated IGBT with control and protection circuits
• Protection Features: Overcurrent, overtemperature, undervoltage protection
• Mounting Type: Screw-mounted module
• Cooling Method: Heatsink / forced air cooling
• Application: Motor drives, inverters, and power conversion systems
• Package Type: Industrial IPM module
• Operating Environment: High-power industrial applications

Common Replacements:

• Mitsubishi PM400DVA120
• Mitsubishi PM300DVA060
• Mitsubishi CM400DU-24F
