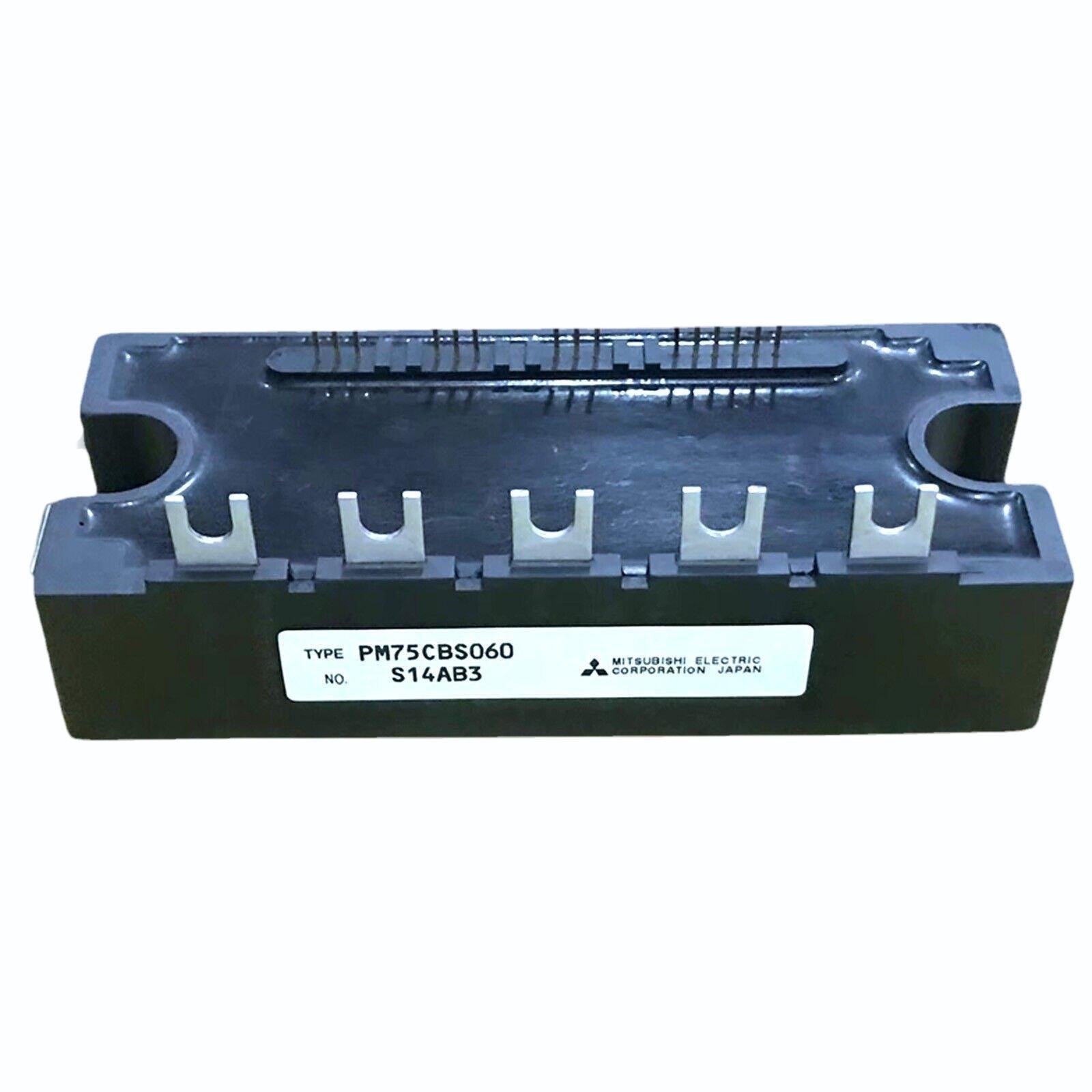

Mitsubishi PM75CBS060 Module Power Supply PM75CBS060

Description:

PM75CBS060  POWER BLOCK 75A/600V The PM75CBS060 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module designed for efficient power switching and control in various industrial applications. This module features a robust construction and is optimized for use in motor drives, inverters, and power supply systems. With its high current rating and efficient thermal management, the PM75CBS060 provides reliable performance and durability in demanding environments. It is designed to offer fast switching speeds and high efficiency, making it suitable for high-power and high-frequency applications.

Technical Specifications:

• Type: IGBT Module
• Model: PM75CBS060
• Collector-Emitter Voltage (Vceo): 600V
• Collector Current (Ic): 75A
• Gate-Emitter Voltage (Vge): ±20V
• Power Dissipation: 375W
• Switching Frequency: Up to 20 kHz
• Package Type: Dual In-line Package (DIP)
• Operating Temperature Range: -40°C to 150°C
• Dimensions: 78mm x 65mm x 27mm
• Weight: 150g
• Cooling: Requires external heat sink
