Mitsubishi

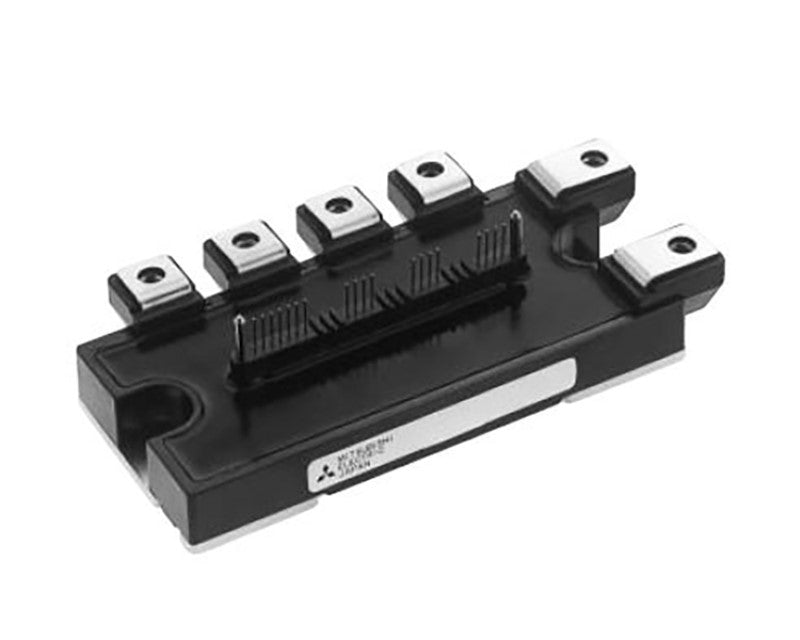

Mitsubishi PM75RL1A120 Power Supply Module

Mitsubishi PM75RL1A120 Power Supply Module

Condition
Regular price $255.00
Regular price Sale price $255.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

The PM75RL1A120 is a robust IGBT (Insulated Gate Bipolar Transistor) power module from Mitsubishi, designed for high-power industrial applications such as motor drives, power inverters, and high-efficiency power supplies. This module features advanced switching capabilities with excellent thermal performance, providing reliable and efficient power management in demanding environments. Its durable construction ensures consistent operation under high-current conditions.

Technical Specifications:

  • Type: IGBT Power Module
  • Rated Current: 75A
  • Rated Voltage: 1200V
  • Insulation Voltage: 2500V AC (for 1 minute)
  • Collector-Emitter Saturation Voltage: 2.5V
  • Power Dissipation: 175W
  • Switching Frequency: 10 kHz
  • Operating Temperature Range: -40°C to 150°C
  • Mounting Type: Screw mount
  • Package: Isolated module
  • Applications: Motor drives, power inverters, UPS systems, and high-power industrial control
