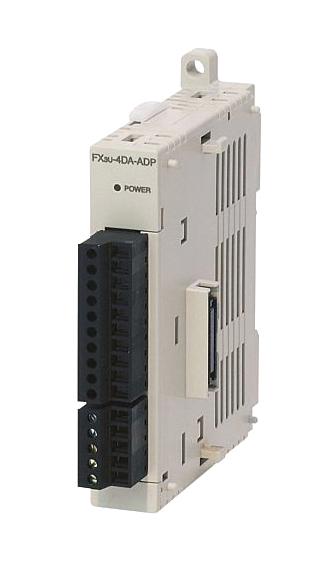

Mitsubishi Programmable Controller FX3U-4DA-ADP PLC

Description:

The Mitsubishi FX3U‑4DA‑ADP is a PLC analog output adapter module used with the FX3U programmable logic controller (PLC) series to enable high‑precision analog signal output. Commonly installed in industrial automation panels and control systems, it allows the PLC to drive and control external analog devices such as valves, actuators, and variable speed drives. Maintenance teams, system integrators, and OEMs use this adapter for system expansions, upgrades, and replacements where accurate analog output control is required.

Applications:

This Mitsubishi analog output adapter is used in industrial automation environments requiring precise analog signal control. Typical applications include proportional valve control, process automation feedback loops, temperature and pressure regulation systems, flow control, motion control systems, and machine interfaces where PLC‑generated analog signals are needed to control actuator position, speed, or process variables.

Technical Specifications:

• Manufacturer Part Number (MPN): FX3U‑4DA‑ADP
• Product Type: PLC Analog Output Adapter Module
• Compatible PLC Platform: Mitsubishi FX3U Series
• Number of Analog Outputs: 4
• Output Signal Types: 0–10 V, 4–20 mA (model dependent)
• Resolution: High‑resolution DAC per channel
• Output Load Capability: Typical industrial standard (varies by signal type)
• Communication Interface: Backplane bus connection to FX3U PLC
• Power Supply: Provided by host PLC system
• Mounting Type: DIN rail / PLC rack mount
• Operating Temperature: 0 °C to 55 °C
• Storage Temperature: ‑25 °C to 75 °C
• Protection Class: IP20
• Certification: CE, UL

Common Replacements:

• Mitsubishi FX3U‑4AD (analog output module)
• Siemens SM 4 AO 6ES7531‑7NF00‑0AB0
• Allen‑Bradley 1769‑OF4 (analog output module)
