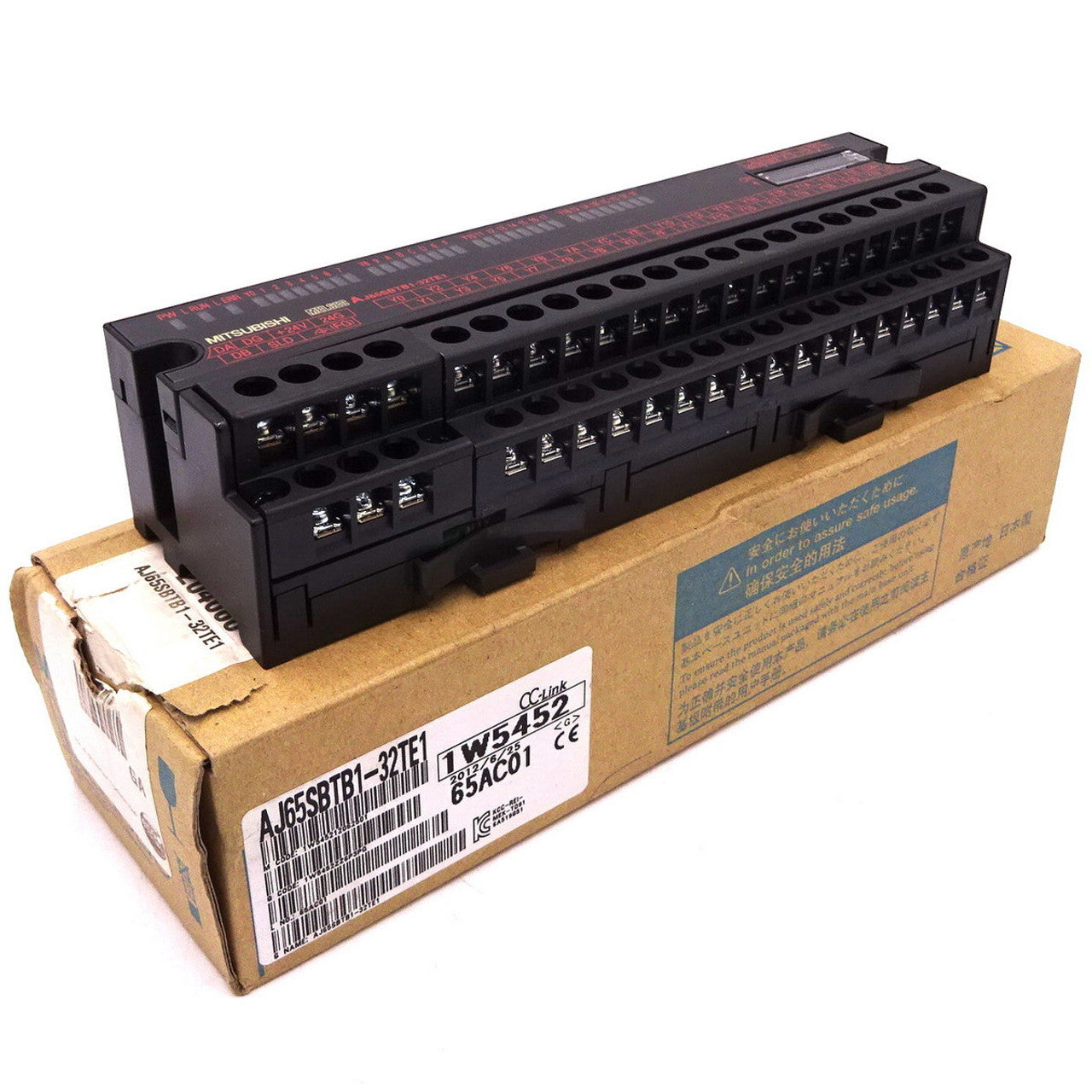

Mitsubishi Programmable Logic AJ65SBTB1-32TE1 CC-LINK I/O32 LOW TR SOURCE

Description:

The Mitsubishi AJ65SBTB1‑32TE1 CC‑Link I/O module is a programmable logic controller (PLC) expansion unit used to add 32 points of low‑trouble source output I/O to Mitsubishi automation systems over a CC‑Link network. Commonly installed in industrial control panels, distributed I/O racks, and automated equipment, it enables efficient remote device control and communication across CC‑Link‑enabled networks. Maintenance teams, system integrators, and OEMs use this module for system expansions, retrofits, and replacements where high‑speed networked I/O and reliable CC‑Link communication are required.

Applications:

This Mitsubishi CC‑Link I/O module is used in industrial automation environments requiring distributed control and networked I/O integration. Typical applications include manufacturing automation, conveyor and material handling systems, packaging machinery, process control systems, and robotics, where remote I/O via CC‑Link improves scalability, wiring simplicity, and coordinated system control across multiple machine zones.

Technical Specifications:

• Manufacturer Part Number (MPN): AJ65SBTB1‑32TE1
• Product Type: PLC CC‑Link I/O Module (32‑point)
• I/O Points: 32 (Low‑TR Source outputs)
• Communication Network: CC‑Link
• Output Type: Source (positive output)
• Output Voltage: Typically 24 V DC
• Max Load Current per Point: Typically 0.5 A (model dependent)
• Network Speed: Supports CC‑Link standard baud rates
• Connection: Removable terminal block
• Mounting Type: DIN rail or rack mount within CC‑Link I/O chassis
• Operating Temperature: 0 °C to 55 °C
• Storage Temperature: ‑20 °C to 75 °C
• Protection Class: IP20
• Certification: CE, UL

Common Replacements:

• Mitsubishi AJ65SBTB1‑32TE2 (alternate low‑TR variant)
• Siemens ET200S 6ES7 231‑4HD32‑0XB0
• Allen‑Bradley 1794‑OB32T (Block I/O)
