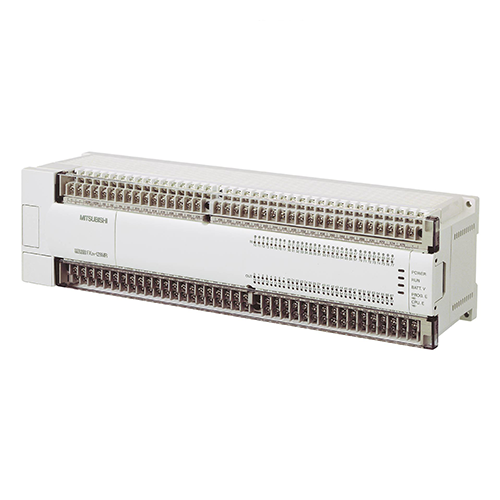

Mitsubishi Programmable Logic Controller FX2N-128MR-001 FX2N128MR001

Description:

FX2N128MR001 PROGRAMMABLE CONTROLLER 64 INPUT / OUTPUT POINTS 264 V 50 / 50 HZ 100 VA The FX2N-128MR-001 is a powerful and flexible programmable logic controller (PLC) from Mitsubishi’s FX2N series, designed to handle more complex automation tasks with ease. It features an expanded I/O capability with 128 points, providing both digital and relay outputs in a compact and space-efficient unit. This PLC offers robust performance for managing a wide range of industrial processes, making it suitable for applications requiring increased control and monitoring capabilities.

Technical Specifications:

• Type: Programmable Logic Controller (PLC)
• Number of I/O Points: 128 (64 inputs, 64 outputs)
• Input Type: Digital, Sink/Source selectable
• Output Type: Relay
• Input Voltage Range: 24V DC
• Output Voltage Range: 24V DC
• CPU Type: Built-in CPU
• Memory: 4K words of RAM
• Communication Ports: Built-in RS-422/RS-485
• Power Supply: 24V DC
• Operating Temperature Range: 0°C to 55°C
• Mounting Type: DIN Rail
