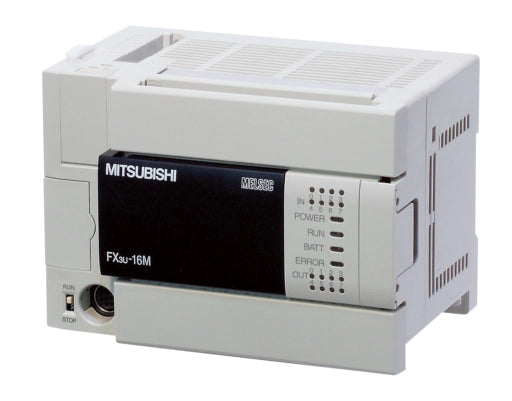

Mitsubishi Programmable Logic Controller MODULE FX3U-16MR/ES IN

Description:

FX3U16MRES LOGIC MODULE FX3U SERIES AC BASE UNIT 8 DC IN / 8 RELAY OUTPUT The FX3U-16MR/ES is a compact and versatile programmable logic controller (PLC) from Mitsubishi's FX3U series, designed to offer efficient control and automation capabilities for a wide range of industrial applications. This model features 16 I/O points with 8 digital inputs and 8 relay outputs, making it suitable for applications requiring moderate control and monitoring functions. The FX3U-16MR/ES is equipped with a high-performance CPU that ensures rapid processing and reliable operation. Its compact size allows for easy integration into control panels, while its robust design and versatile functionality make it an ideal choice for tasks such as machine control, process automation, and equipment management.

Technical Specifications:

• Model: FX3U-16MR/ES
• Type: Programmable Logic Controller (PLC)
• I/O Configuration: 16 points total
• Digital Inputs: 8 points (source/sink type)
• Relay Outputs: 8 points (SPDT relay)
• Input Voltage: 24V DC
• Output Voltage: 24V DC (relay contacts rated for AC and DC)
• Current Consumption: Approximately 200mA (at 24V DC)
• Processing Speed: 0.08 μs per instruction
• Program Memory Capacity: 32 KB
• Data Memory Capacity: 16 KB
• Communication Ports:
• RS-232: 1 port (standard)
• RS-485: 1 port (optional, depending on model)
• Power Supply: 24V DC ±10%
• Operating Temperature Range: 0°C to +55°C
• Dimensions: 90mm x 90mm x 60mm (W x H x D)
• Weight: Approximately 350g
• Enclosure Rating: IP20
