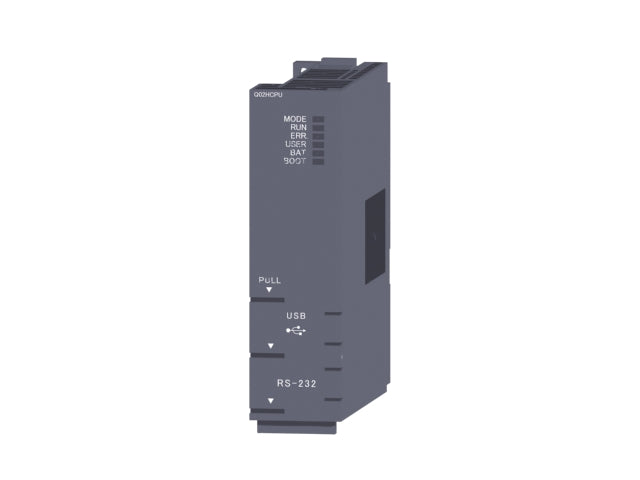

Mitsubishi Q02H-CPU PLC Module Q02HCPU

Description:

The Mitsubishi Q02H-CPU Programmable Controller is a high-speed CPU module from the MELSEC-Q series designed for industrial automation and process control systems. Commonly installed in PLC racks, it executes control logic, manages I/O modules, and supports high-speed processing for machine and plant automation. Maintenance teams, OEMs, and system integrators use this unit for replacement, retrofit, and reliable system control.

Applications:

The Mitsubishi Q02H-CPU PLC Module is used in industrial automation systems requiring high-speed processing and flexible I/O expansion, including manufacturing lines, motion control systems, packaging machines, and process automation. It is ideal for applications that demand fast instruction execution, large I/O capacity, and stable operation in complex control architectures.

Technical Specifications:

• Brand: Mitsubishi Electric
• Part Number: Q02H-CPU (Q02HCPU)
• Product Type: PLC CPU Unit
• Series: MELSEC-Q Series
• Program Capacity: 28K steps
• Program Memory: Approx. 112 KB
• I/O Points: 4,096 points (max 8,192 device points)
• Processing Speed: Approx. 34 ns (LD instruction)
• Communication Ports: USB and RS-232 interface
• Expansion Capability: Multiple base extensions supported
• Module Mounting: Rack-mounted (Q series base unit)
• Memory Card Interface: Supported
• Programming Method: Sequence control (ladder logic)
• Lifecycle Status: Discontinued (Sept 2018)
• Application: Industrial machine and process control

Common Replacements:

• Mitsubishi Q02UCPU
• Mitsubishi Q06HCPU
• Mitsubishi Q12HCPU
