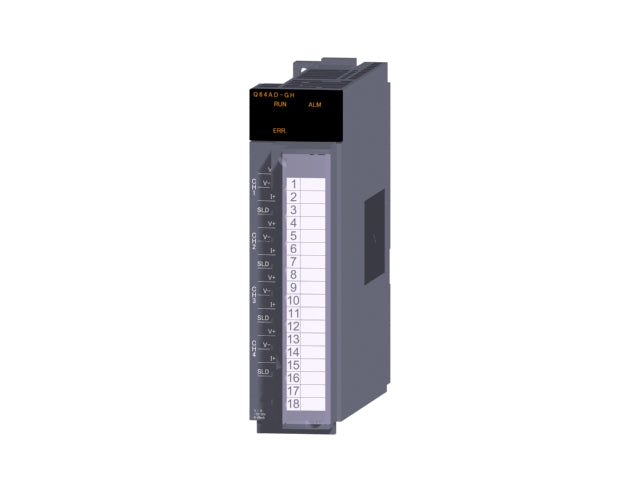

Mitsubishi Q64AD-GH Isolated A/D Converter Unit Module Q64ADGH

Description:

The Mitsubishi Q64AD-GH Isolated A/D Converter Unit Module is used in Mitsubishi MELSEC-Q series PLC systems for high-speed analog signal input and data conversion. Commonly installed in process control panels, factory automation lines, test equipment, and industrial measurement systems requiring isolated multi-channel analog input. Maintenance teams, OEMs, and system integrators use this module for replacement, system expansion, or analog input retrofit to maintain accurate signal acquisition and stable PLC operation.

Applications:

The Mitsubishi Q64AD-GH Used in MELSEC-Q PLC racks for analog signal monitoring in process automation, temperature and pressure measurement systems, flow monitoring equipment, chemical processing lines, factory automation control panels, data acquisition systems, and industrial machinery requiring isolated multi-channel analog input conversion.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: Q64AD-GH
• Product Type: Isolated Analog Input Module (A/D Converter)
• Series: MELSEC-Q Series
• Input Channels: 4-channel analog input
• Input Type: Voltage / Current selectable
• Input Range: ±10V, 0–10V, 0–20mA, 4–20mA (model dependent)
• Conversion Method: Analog to Digital (A/D) conversion
• Resolution: High-resolution analog conversion
• Isolation: Channel-to-channel isolation
• Conversion Speed: High-speed sampling (GH type)
• Mounting: Q Series base unit rack mount
• Backplane Communication: MELSEC-Q bus
• External Wiring: Screw terminal block
• Application: Industrial analog signal acquisition

Common Replacements:

• Mitsubishi Q64AD
• Mitsubishi Q68ADV
• Mitsubishi Q64AD2DA
