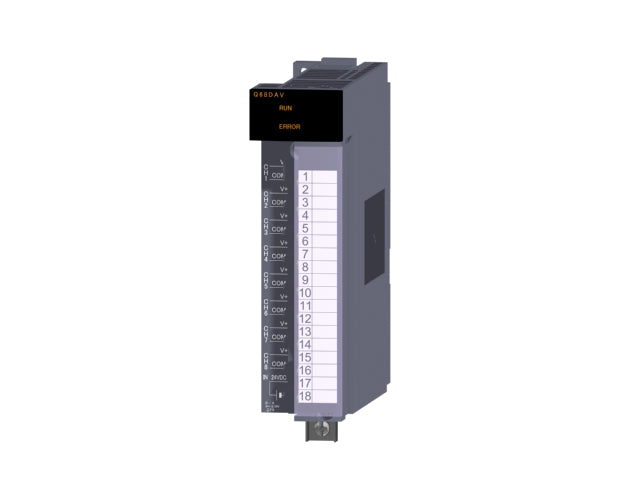

Mitsubishi Q68DAV 8-Channel Digital-Analog Converter Output Module Q68DAV

Description:

The Mitsubishi Q68DAV Digital-Analog Converter Output Module is used in industrial automation systems to convert digital signals from PLCs into precise analog outputs for process control. Commonly installed in manufacturing lines, process plants, and automation systems requiring accurate voltage or current output control. Maintenance teams, OEMs, and system integrators use this part for system expansion, replacement, and retrofit of analog control functions in Mitsubishi MELSEC-Q PLC systems.

Applications:

The Mitsubishi Q68DAV module is widely used in industrial environments where precise analog signal control is required. It is commonly applied in process automation, chemical plants, water treatment systems, temperature control systems, and production lines where PLCs need to control devices such as valves, inverters, and actuators using analog signals.

Technical Specifications:

• Manufacturer Part Number (MPN): Q68DAV
• Product Type: Analog Output Module (D/A Converter)
• Series: MELSEC-Q
• Number of Channels: 8 channels
• Output Type: Voltage and current output
• Output Range: 0–10 V, ±10 V, 0–20 mA, 4–20 mA
• Resolution: High resolution (approx. 12-bit or higher)
• Conversion Speed: High-speed D/A conversion
• Accuracy: High accuracy with low deviation
• Isolation: Channel-to-channel isolation
• Mounting: Base unit (rack-mounted)
• Compatibility: Mitsubishi MELSEC-Q Series PLC

Common Replacements:

• Mitsubishi Q64DAV
• Mitsubishi Q68DAI
• Mitsubishi Q64DAN
