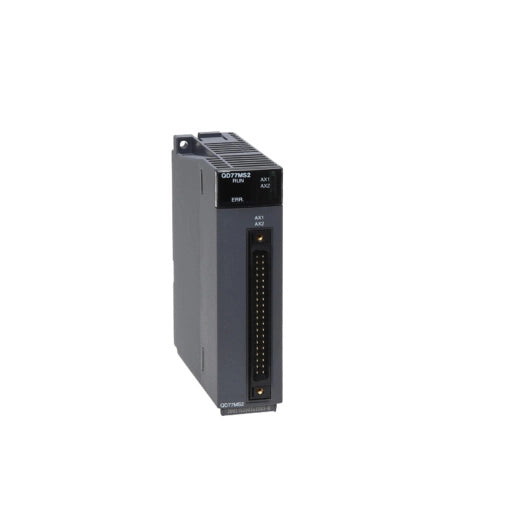

Mitsubishi QD77MS2 Motion Control Module QD77MS2

Description:

The Mitsubishi QD77MS2 Motion Control Module is used in industrial automation systems to provide precise multi-axis positioning and motion control within MELSEC-Q PLC platforms. Commonly installed in CNC machinery, assembly lines, and automated equipment requiring synchronized motion and high-speed positioning. Maintenance teams, OEMs, and system integrators use this part for system expansion, replacement, and enhancing motion control capabilities.

Applications:

The Mitsubishi QD77MS2 motion control module is widely used in advanced automation environments where coordinated multi-axis control is critical. It is typically applied in packaging machines, robotics, material handling systems, and semiconductor equipment to ensure accurate positioning, smooth interpolation, and reliable control of servo-driven processes.

Technical Specifications:

• Manufacturer Part Number (MPN): QD77MS2
• Brand: Mitsubishi Electric
• Product Type: Motion Control Module
• Series: MELSEC-Q Series
• Number of Axes: 2-Axis Control
• Control Method: Pulse Train Output (Positioning Control)
• Interpolation: Linear and Circular Interpolation
• Positioning Data: Multiple Positioning Points Supported
• Communication Interface: Backplane (PLC Base Unit)
• Compatible PLC: Mitsubishi MELSEC-Q Series CPUs
• Servo Compatibility: Mitsubishi Servo Systems
• Mounting Type: Rack Mount (Q Series Base Unit)
• Power Supply: Supplied via PLC Rack
• Application: Multi-Axis Motion and Position Control

Common Replacements:

• Mitsubishi QD75M2 Motion Control Module
• Mitsubishi QD77MS4 Motion Control Module
• Mitsubishi RD77MS2 Motion Control Module
