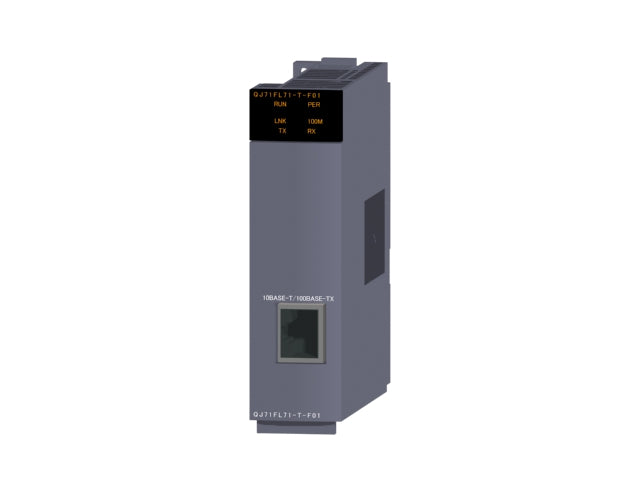

Mitsubishi QJ71FL71-T-F01 Melsec-q Network Module QJ71FL71TF01

Description:

The Mitsubishi QJ71FL71-T-F01 Melsec-Q Network Module is used in Mitsubishi MELSEC-Q series PLC systems for FL-net industrial Ethernet communication and controller data exchange. Commonly installed in factory automation networks, CNC systems, robot controllers, and distributed control systems requiring high-speed PLC network integration. Maintenance teams, OEMs, and system integrators use this module for replacement, network expansion, or communication retrofit to enable reliable controller-to-controller communication.

Applications:

The Mitsubishi QJ71FL71-T-F01 is used in PLC-to-PLC communication networks, CNC machine integration, robot controller communication, distributed manufacturing systems, production line synchronization, factory automation networks, and industrial control systems requiring FL-net (OPCN-2) Ethernet communication.

Technical Specifications:

• Brand: Mitsubishi
• Part Number: QJ71FL71-T-F01
• Product Type: Network Interface Module
• Series: MELSEC-Q Series
• Network Type: FL-net (OPCN-2) Ver.2.00
• Communication Interface: 10BASE-T / 100BASE-TX
• Transmission Speed: 10 Mbps / 100 Mbps
• Transmission Protocol: UDP/IP FA Link
• Maximum Nodes: 254 nodes per system
• Maximum Segment Length: 100 m (hub to node)
• Cyclic Data Volume: 8k bits + 8k words
• Message Data Volume: Up to 1024 bytes
• I/O Assignment: 32 intelligent I/O points
• Internal Current Consumption: Approx. 0.50 A at 5V DC
• Mounting: MELSEC-Q base unit rack mount
• Application: PLC network communication module

Common Replacements:

• Mitsubishi QJ71FL71-B5-F01
• Mitsubishi QJ71E71-100
• Mitsubishi QJ71BR11
