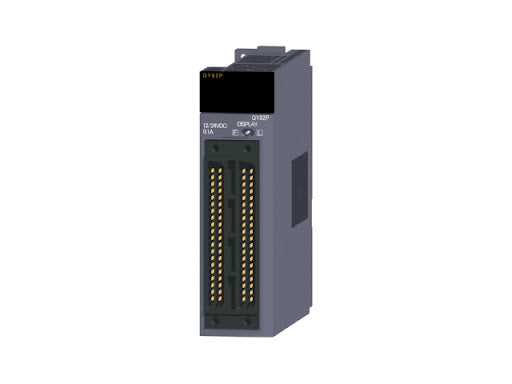

Mitsubishi QY82P 64 Points Digital Output Modules
Mitsubishi QY82P 64 Points Digital Output Modules
Description:
The Mitsubishi QY82P Digital Output Module is used in Mitsubishi MELSEC-Q series PLC systems for high-density transistor output control in automation applications. Commonly installed in factory automation panels, assembly machines, packaging equipment, and material handling systems requiring multi-point 24VDC digital output. Maintenance teams, OEMs, and system integrators use this module for replacement, I/O expansion, or control system retrofit to maintain reliable PLC output switching.
Applications:
The Mitsubishi QY82P is used in MELSEC-Q PLC racks for driving solenoids, relays, indicator lamps, small actuators, conveyor controls, packaging machinery, assembly automation, and factory automation equipment requiring 64-point 24VDC transistor output control.
Technical Specifications:
• Brand: Mitsubishi
• Part Number: QY82P
• Product Type: Digital Output Module
• Series: MELSEC-Q Series
• Output Points: 64 outputs
• Output Type: Transistor output (source type)
• Rated Load Voltage: 12–24 V DC
• Maximum Load Current: 0.1 A per point
• Maximum Current: 2 A per common
• Isolation Method: Photocoupler isolation
• Wiring Method: Connector type
• Internal Current Consumption: Approx. 0.16 A (5V DC)
• Response Time: High-speed transistor switching
• Mounting: Q series base unit rack mount
• Dimensions: Approx. 27.4 × 98 × 90 mm
• Application: PLC digital output control
