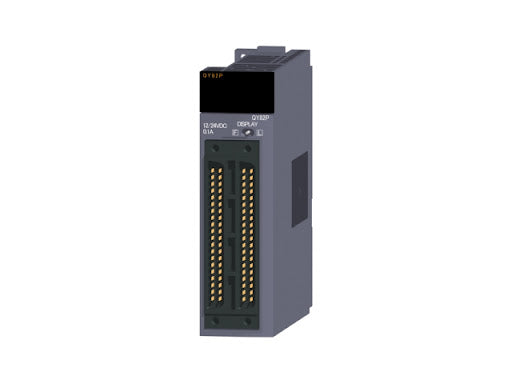

Mitsubishi QY82P 64 Points Digital Output Modules (Source Transistor Type)

Description:

The Mitsubishi QY82P 64‑Point Digital Output Module is used in programmable logic controller (PLC) systems to provide a high‑density set of discrete output channels for controlling external devices. Commonly installed in industrial automation panels, machine control systems, and distributed I/O racks where 64 digital outputs are needed. Maintenance teams and system integrators use this module for system expansion, retrofit, and replacement to interface PLC logic with actuators, relays, lamps, and solenoids.

Applications:

The Mitsubishi QY82P module is widely used in industrial automation environments to control discrete field devices from PLC logic. It is deployed in manufacturing lines, conveyor systems, packaging machines, bottling plants, material handling systems, and process automation where multiple output points are required. The module enables reliable switching of loads such as pilot lights, contactors, valves, and alarms, supporting complex control tasks and large I/O configurations.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: QY82P
• Product Type: Digital Output Module
• I/O Capacity: 64 discrete output points
• Output Type: Transistor (PNP/NPN depending on configuration)
• Output Voltage: Typically 24 V DC
• Load Current: Per channel rating (model dependent)
• Total Module Load: System dependent per Mitsubishi specs
• Response Time: Fast switching for PLC control
• Mounting: Rack or base mounting in automation cabinet
• Connection: Field terminal connection blocks
• Isolation: Optical/electrical isolation between outputs and PLC logic
• Indicators: Status LEDs per output group
• Protection: Short‑circuit and overload protection per channel
• Application: Driving discrete actuators and devices in automated systems

Common Replacements:

• Mitsubishi QD82P (alternate 64‑point output module)
• Mitsubishi QY16P (16‑point digital output module)
• Allen‑Bradley 1756‑OB32 (32‑point output module)
