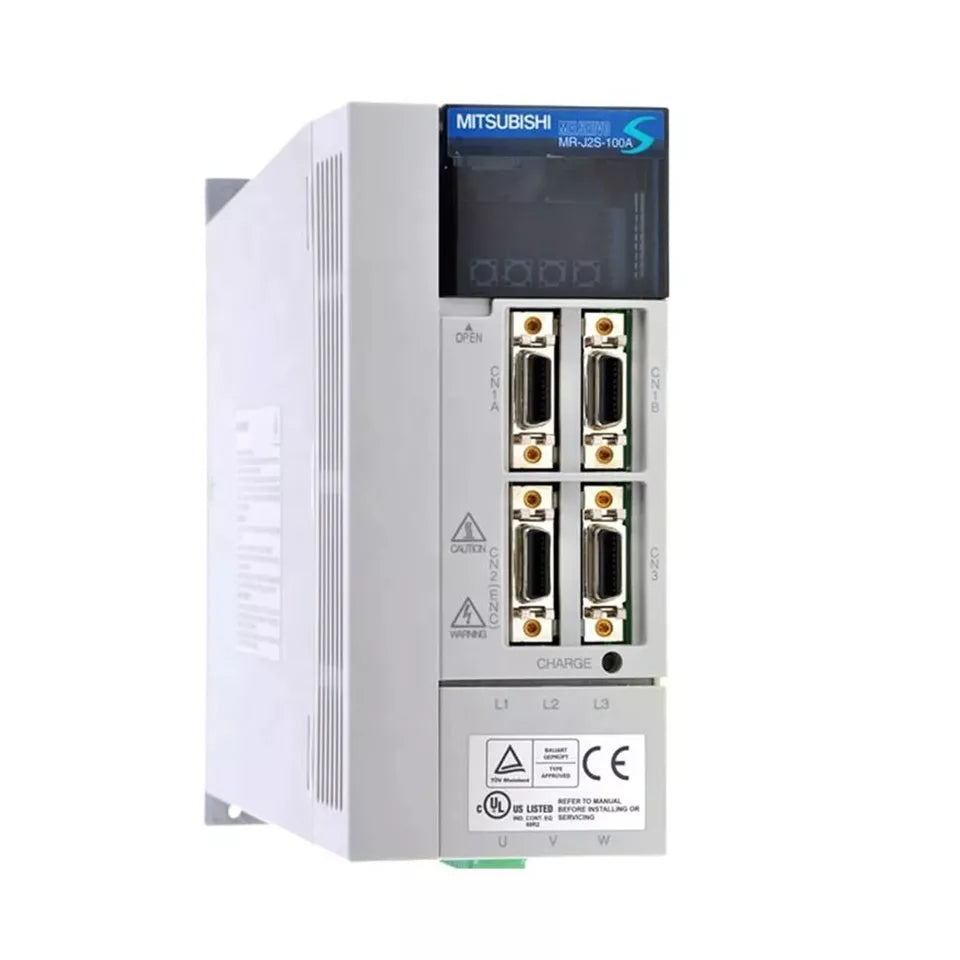

Mitsubishi Servo Driver MR-J2S-100A MRJ2S100A

Description:

The Mitsubishi MR‑J2S‑100A Servo Driver (MRJ2S100A) is a digital AC servo drive used to precisely control Mitsubishi servo motors for position, speed, and torque in motion control systems. Installed in industrial automation equipment where accurate and responsive motion control is required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system performance upgrades to improve motion accuracy and dynamic response.

Applications:

The MR‑J2S‑100A servo driver is used in industrial automation environments that demand controlled motion and precise positioning. Typical applications include CNC machining centers, robotics, pick‑and‑place systems, conveyor indexing, packaging equipment, labeling machines, and automated assembly lines. With advanced feedback and tuning capabilities, it supports smooth motion profiles and reliable performance in demanding manufacturing and process control systems.

Technical Specifications:

• Manufacturer: Mitsubishi Electric
• Model / Part Number: MR‑J2S‑100A (MRJ2S100A)
• Product Type: AC Servo Driver / Digital Servo Amplifier
• Series: MR‑J2S
• Input Voltage: 200–230 VAC, three‑phase
• Control Method: Digital servo control with encoder feedback
• Rated Output Current: ~7–8 A (model dependent)
• Command Input: Pulse train or network interface compatible
• Feedback Support: Encoder (incremental)
• Protection Features: Overcurrent, overvoltage, overtemperature, phase loss protection
• Cooling: Integrated fan and heatsink design
• Mounting: Panel or control cabinet installation
• Application: Precision motion control in automated systems

Common Replacements:

• Mitsubishi MR‑J2S‑80A Servo Drive (lower power variant)
• Mitsubishi MR‑J2S‑200A Servo Drive (higher power variant)
• Yaskawa SGDV‑R90A01A Servo Drive
