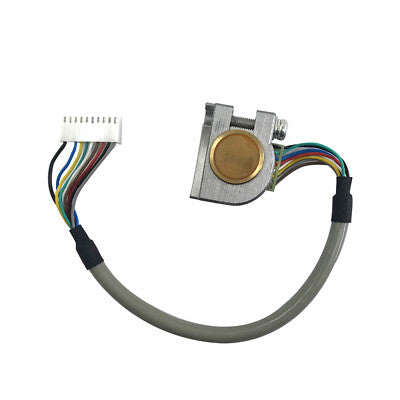

Mitsubishi TS5691N1170 Shaft Encoder TS5691N1170

Description:

The Mitsubishi TS5691N1170 Shaft Encoder is used in industrial automation systems to provide accurate position and speed feedback for motion control applications. Commonly installed in servo motors, CNC machines, and automated equipment requiring precise rotational monitoring. Maintenance teams, OEMs, and system integrators use this part for repair, retrofit, and replacement of encoder units in Mitsubishi systems.

Applications:

The Mitsubishi TS5691N1170 shaft encoder is widely used in CNC machining centers, packaging machinery, conveyor systems, and robotics where accurate feedback is essential for closed-loop control. It supports high-resolution position detection and stable signal output in applications requiring precise synchronization and motion accuracy.

Technical Specifications:

• Manufacturer Part Number (MPN): TS5691N1170
• Brand: Mitsubishi Electric
• Product Type: Shaft Encoder
• Encoder Type: Incremental / Absolute (application dependent)
• Output Signal: Pulse signal for position and speed feedback
• Mounting Type: Shaft-mounted
• Connection Type: Cable connection
• Resolution: High-resolution feedback (model dependent)
• Application: Position and speed detection in motion control systems
• Compatibility: Mitsubishi servo systems and CNC equipment
• Operating Environment: Industrial use

Common Replacements:

• Mitsubishi TS5691N1040
• Mitsubishi OSA104S2
• Mitsubishi OSE253S2
