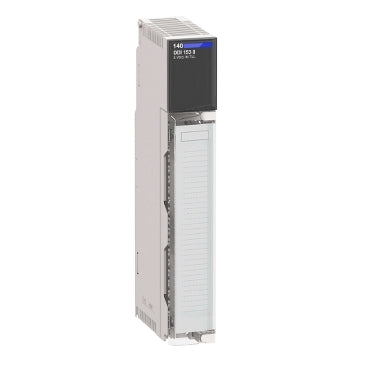

Modicon Schneider Electric 140-DDI-353-00 QUANTUM ELECTRIC INPUT MODULE 140DDI35300

Description:

The Modicon Schneider Electric 140-DDI-353-00 Quantum Discrete Input Module is used in industrial automation systems to interface field devices with Modicon Quantum PLC controllers. This module provides multiple digital input channels that allow sensors, switches, and other discrete field devices to communicate status signals to the PLC. It is commonly installed in industrial control panels and automation racks where reliable monitoring of machine signals and process inputs is required. Maintenance teams and system integrators frequently use this module to expand PLC input capacity, replace failed I/O modules, and maintain existing Modicon Quantum automation systems.

Applications:

The Modicon Schneider Electric 140DDI35300 module is widely used in industrial environments including manufacturing production lines, process automation systems, packaging machinery, material handling systems, water and wastewater facilities, and large industrial control systems where reliable monitoring of discrete field signals improves automation performance and operational reliability.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: 140DDI35300
• Product Type: Discrete Input PLC Module
• Series: Modicon Quantum
• Number of Inputs: 32 digital input channels
• Input Voltage: 24 V DC nominal
• Input Voltage Range: 19.2–30 V DC
• Input Logic: Positive logic (sink)
• Channel Groups: 4 groups of inputs
• Addressing Requirement: 2 input words
• Input Impedance: 2500 ohms
• Response Time: ≤ 1 ms transition time
• Bus Current Requirement: 330 mA
• Mounting Type: Rack mounted Quantum module
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: −40°C to 85°C
• Function: Provides digital signal monitoring for PLC control systems

Common Replacements:

• Schneider Electric 140DDI35310
• Schneider Electric 140DDI15310
• Schneider Electric BMXDDI3202
